Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H028A27ZTIGC4N10
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
200x648 Px |
Dimensions (mm): |
24.42x74.7x2.42 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
SPI |
Operating Temperature:: |
-20~70℃ |
Display Content: |
200x648 Px |
Dimensions (mm): |
24.42x74.7x2.42 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
SPI |
Operating Temperature:: |
-20~70℃ |

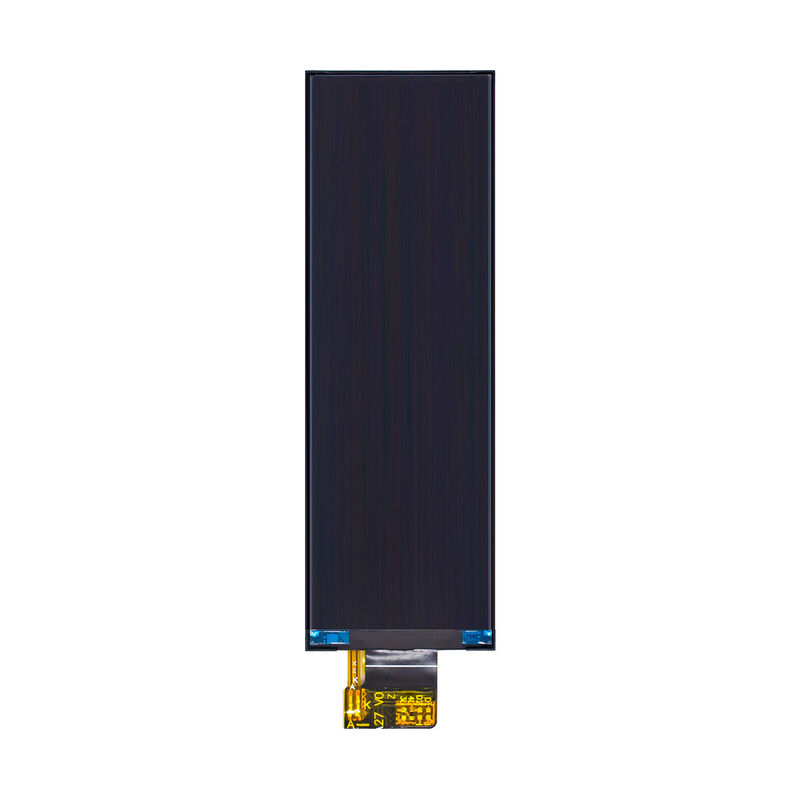

In the demanding fields of medical equipment and sophisticated central control systems, display performance is non-negotiable. Meet the solution: the advanced 2.8 inch Bar TFT LCD Display. Engineered for excellence, this screen is built to deliver unparalleled reliability and clarity in critical applications.
The cornerstone of this module is its superior IPS Full View technology, ensuring consistent, vibrant colors and a wide viewing angle from any orientation. The high brightness backlight guarantees perfect readability even in brightly lit environments, making every detail sharp and clear. For system integrators, the versatile 2.8 inch Bar TFT LCD Display offers seamless integration through its standard interface and a robust driver chip that ensures smooth, efficient performance.
Durability is a key feature. This display is designed to withstand challenging conditions, operating flawlessly across a wide temperature range. Its built-in protection against electrostatic discharge provides an extra layer of reliability, ensuring the unit's longevity in sensitive and industrial settings. The compact and slender exterior design of the 2.8 inch Bar TFT LCD Display maximizes the active viewing area without compromising on space, making it an ideal choice for modern, compact devices.
Whether it's for a life-saving medical monitor or a complex central control panel, the 2.8 inch Bar TFT LCD Display delivers the performance you can trust. Its low voltage requirement further enhances its suitability for a wide array of portable and fixed electronic systems. Choose the 2.8 inch Bar TFT LCD Display for a perfect blend of innovative technology, robust construction, and exceptional visual performance.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H028A27ZTIGC4N10 | |
| Diagonal size | 2.8” | Inch |
| Resolution | 200x648 | Dot |
| Dimensions | 24.42x74.7x2.42 | mm |
| Active area (AA) | 21.42x69.4 | mm |
| LCD type | 2.8” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:3 | |
| Backlight type | LED white | |
| TFT driver IC | GC9B72 | |
| Brightness | 500cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
