Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H020A09YLIST7N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x360 Px |
Dimensions (mm): |
46.1x40.96x2.5 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
700cd/m2 |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
ST7701S |
Display Content: |
480x360 Px |
Dimensions (mm): |
46.1x40.96x2.5 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
700cd/m2 |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
ST7701S |

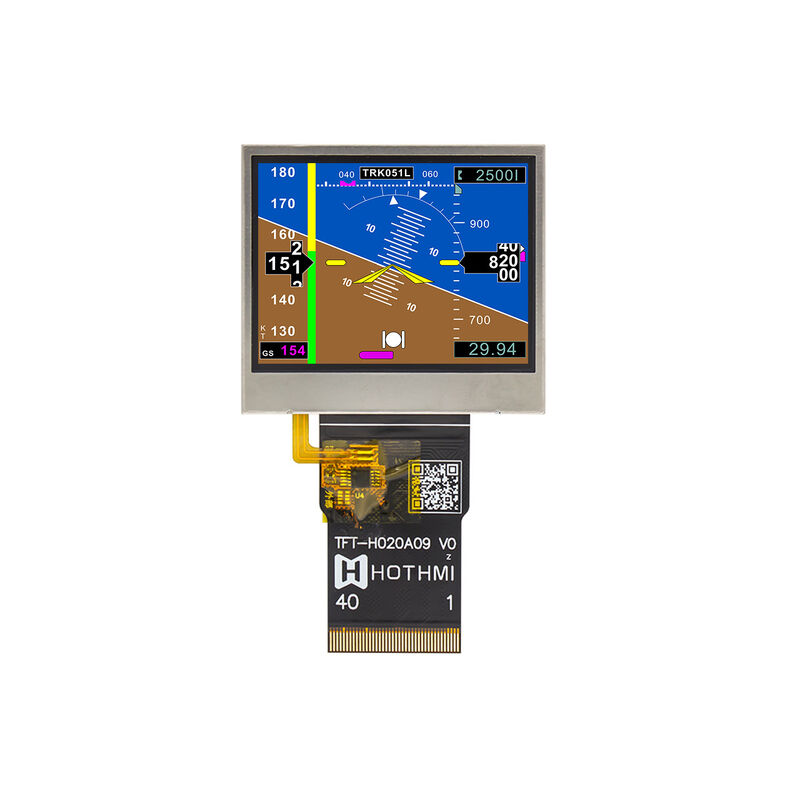

Enhance Your Designs with Our 2-inch 480x360 TFT LCD Display with RGB Interface | High-Brightness IPS TFT LCD Display
Introducing our premium 2-inch 480x360 TFT LCD display, designed to deliver exceptional visual performance and robust reliability for demanding professional and portable applications. This high-brightness module is ideal for designers seeking the perfect balance of compact form factor, stunning clarity, and rugged durability.
At the heart of this module is a crisp 480x360 TFT LCD display. The adoption of IPS (In-Plane Switching) technology ensures a full viewing angle of 85/85/85/85, guaranteeing consistent, accurate color reproduction and impeccable image clarity even when viewed at extreme angles, without inversion or color shift. This makes every interaction with your device intuitive and easy to understand. A standout feature of this 480x360 TFT LCD display is its high brightness of up to 700 nits. This ensures clear visibility even in direct sunlight and bright environments, making it indispensable for outdoor instrumentation, industrial handheld devices, and medical monitoring equipment. Furthermore, this 480x360 TFT LCD display boasts exceptional performance, with a wide operating temperature range (-20°C to +70°C) and up to 8kV ESD protection, ensuring stable operation in harsh environments.
Driven by a powerful ST7701S controller and equipped with a standard RGB interface, this 480x360 TFT LCD display seamlessly integrates with a wide range of mainstream processors and FPGAs. Choose this display to bring superior visibility, reliability, and color performance to your next-generation innovations in instrumentation, portable consumer electronics, or advanced industrial control.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H020A09YLIST7N40 | |
| Diagonal size | 2.0” | Inch |
| Resolution | 480x360 | Dot |
| Dimensions | 46.1x40.96x2.5 | mm |
| Active area (AA) | 40.824x30.618 | mm |
| LCD type | 2.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 700cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
