Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H014A3DQIST4N10
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
240×240 Dots |
Dimensions (mm): |
27.56×30.7×1.82 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
400cd/m2 |
Driver Chip: |
ST7789 |
Interface: |
SPI-4L |
Operating Temperature:: |
-20~70℃ |
Display Content: |
240×240 Dots |
Dimensions (mm): |
27.56×30.7×1.82 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
400cd/m2 |
Driver Chip: |
ST7789 |
Interface: |
SPI-4L |
Operating Temperature:: |
-20~70℃ |

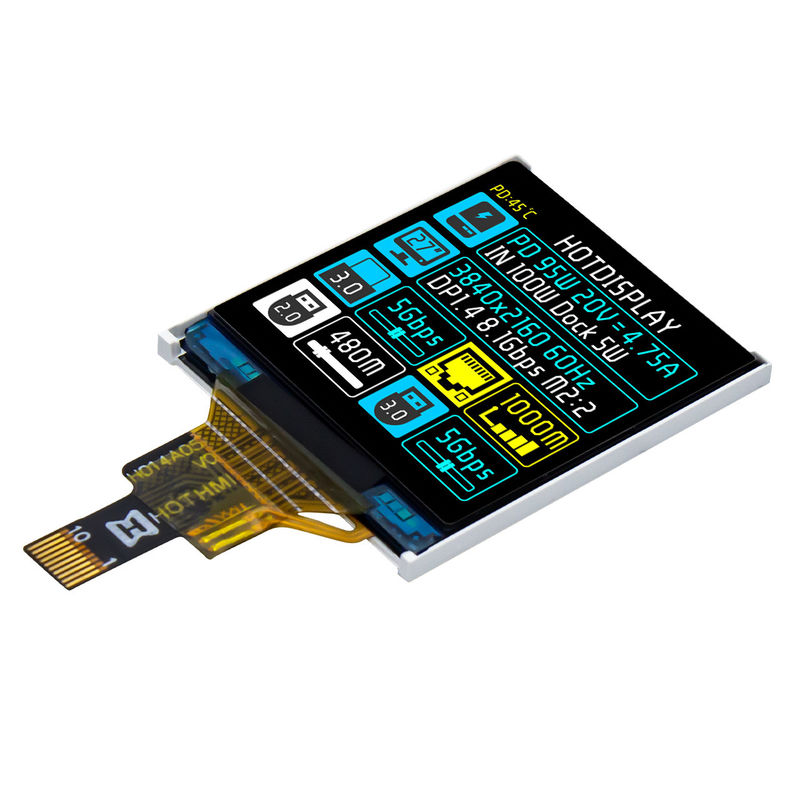

TFT-H014A3DQIST4N10 is a 1.4-inch square TFT LCD display module with a resolution of 240x240, a built-in ST7789 controller, an optional touch screen, high picture quality, IPS wide viewing angle, support for 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 2.8V voltage, and support for vertical display.
This product is presented to users in a 1.4 square appearance, with a delicate body, but the content that can be displayed is not monotonous at all. The application range can be smart wearables, electronic equipment, instrumentation and other products. Suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms. All materials meet environmental protection requirements and RoHS standards.
This is a display version with FPC flexible cable. The ST7789 controller has strong compatibility. Developers can develop driver boards according to the functions of specific products. If this model is not suitable, we also provide the same size 128x128 resolution TFT-H014A1QQTST5N26. Of course, if the developer lacks development experience, we also provide models with driver boards for this display: 1.4-inch SPI display module HTM-H014A3-SPI-V0, 1.44-inch 128x128 resolution TFT module LCM-TFT014T1QQS4LN08D.
| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 1.4” | Inch |
| Resolution | 240 × RGB × 240 (TFT) | dots |
| Dimensions | 27.56x30.7x1.82 | mm |
| Effective area (AA) | 25.2x25.2 | mm |
| LCD type | Square TFT | |
| Display perspective | 80/80/80/80 (IPS) | |
| Aspect ratio | 1:1 | |
| Backlight type | LED, white | |
| TFT driver IC | ST7789 | |
| Touch panel | None | |
| Surface | Glossy | |
| Brightness | 400 | cd/㎡ |
| Operating temperature | -20~+70 | °C |
| Storage temperature | -30~+80 | °C |
