Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H101A19HDINV5N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
800x1280 Px |
Dimensions (mm): |
142.9x228.5x2.67 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
NV3051F |
Display Content: |
800x1280 Px |
Dimensions (mm): |
142.9x228.5x2.67 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
NV3051F |

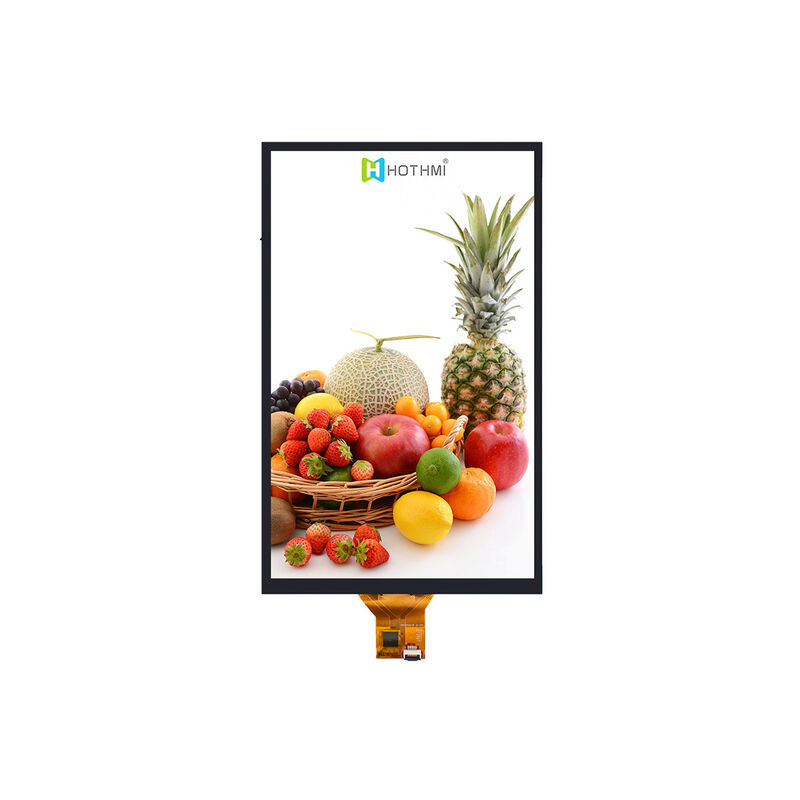

Introducing our premium 10.1-inch TFT LCD Display, engineered to deliver exceptional clarity and performance for demanding applications. This high-definition screen boasts an 800x1280 resolution with an IPS panel, ensuring vibrant colors and sharp details from every angle. Whether integrated into sophisticated instrumentation or cutting-edge portable electronic devices, this 10.1-inch TFT LCD Display provides a visual output that is both brilliant and reliable.
Durability meets ultra-thin design in this versatile module. With a slim profile and a compact outline, it is perfectly suited for space-constrained projects without compromising on a generous active viewing area. The robust 10.1-inch TFT LCD Display is built to last, featuring an anti-static ESD rating of 8KV and an operating temperature range of -20~70℃, guaranteeing stable performance in various environments.
At the heart of its connectivity is the LVDS interface, driven by the NV3051F chip, which ensures a stable, high-speed signal transmission and pristine image quality. A high brightness of 500 cd/m² makes this display easily readable even under bright lighting conditions. For a powerful combination of HD visuals, ruggedness, and energy efficiency (3.3V power supply), choose this advanced 10.1-inch TFT LCD Display as the core of your next innovation.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H101A19HDINV5N40 | |
| Diagonal size | 10.1” | Inch |
| Resolution | 800x1280 | Dot |
| Dimensions | 142.9x228.5x2.67 | mm |
| Active area (AA) | 135.36x216.576 | mm |
| LCD type | 10.1” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | NV3051F | |
| Brightness | 500cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
