Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H050A1SVISTKC40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
800x1280 Px |
Dimensions (mm): |
142.9x228.5x2.67 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
NV3051F |
Display Content: |
800x1280 Px |
Dimensions (mm): |
142.9x228.5x2.67 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
500cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-20~70℃ |
Driver IC: |
NV3051F |

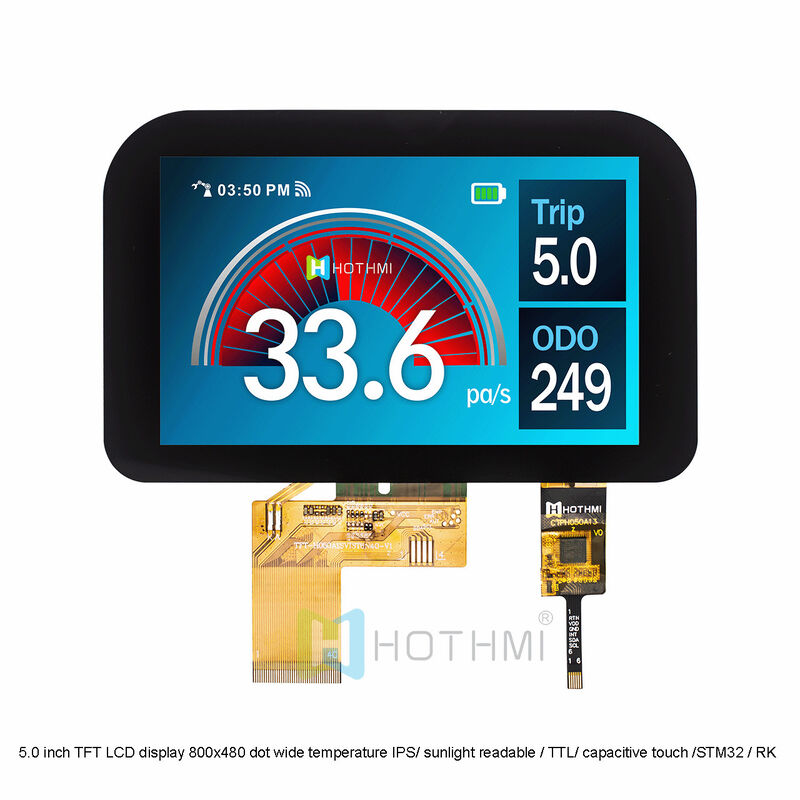

TFT-H050A1SVISTKC40 is a 5.0-inch TFT wide temperature LCD screen that supports TTL interface, with a resolution of 800x480, built-in ST7262<TFT>, GT911<CTP>controller, optional touch screen, high image quality, brightness up to 1500nits, IPS full view angle, supports TTL 24 bit (RGB Mode) interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for STM32/RK series microcontroller development platforms.
| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT | |
| Diagonal inches | 5.0” | Inch |
| resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 135x85.25x4.75 | mm |
| Size (AA) area | 108x64.8 | mm |
| LCD specifications | TFT, white, transmissive | |
| Display perspective | IPS(U80/D80/L80/R80) | |
| aspect ratio | 3:2 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7262<TFT>, GT911<CTP> | |
| Touch glass type | Capacitive touch (CTP) | |
| surface | Anti-glare/glossy | |
| Display brightness | 1500 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+85 | °C |
