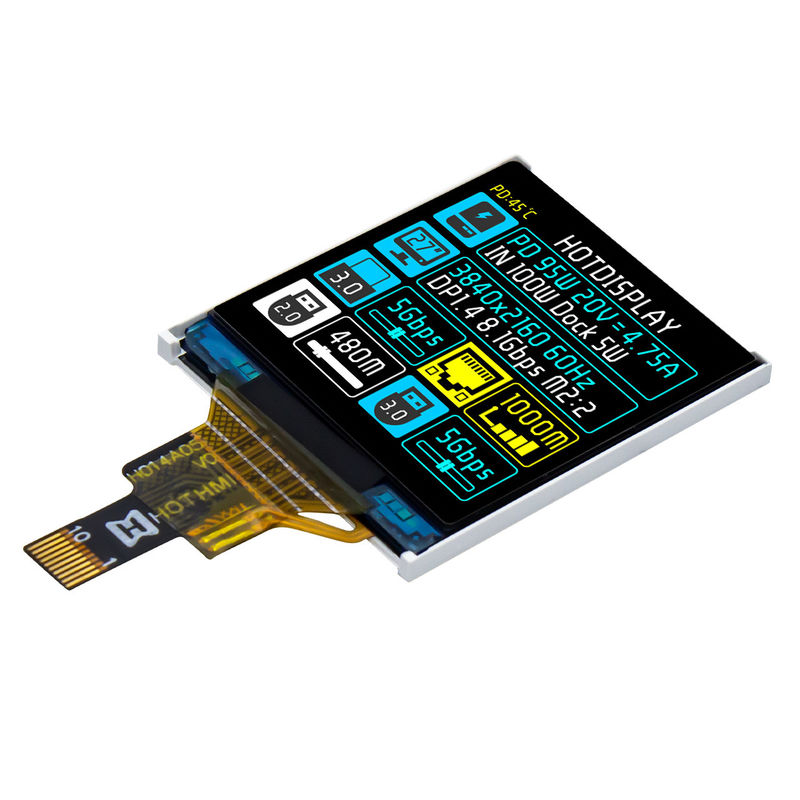

1.44 Inch TFT LCD Display | 128x128 Resolution SPI ST7735

Name: 1.44 Inch TFT LCD Display | 128x128 Resolution SPI ST7735
Brand: Hotdisplay Technology Co.Ltd
SKU: TFT-H014A05QQTST3N10
Availability: InStock

Product Details

Place of Origin: dongguan,China

Brand Name: HOTHMI

Model Number: TFT-H014A05QQTST3N10

Payment & Shipping Terms

Minimum Order Quantity: 2

Delivery Time: 25 days

Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability: 99999

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Display Content:	180×180 Dots	Dimensions (mm):	29x34.41
Field Of View Window Size:	Full Viewing Angle	Backlight Brightness:	350cd/m2
Driver Chip:	ST7735	Interface:	SPI
Operating Temperature::	-20~70℃

Display Content:	180×180 Dots
Dimensions (mm):	29x34.41
Field Of View Window Size:	Full Viewing Angle
Backlight Brightness:	350cd/m2
Driver Chip:	ST7735
Interface:	SPI
Operating Temperature::	-20~70℃

Product Description

If you want to buy, please go to https://www.display-lcd.com/

TFT - H014A3DQIST4N10: Your Ideal LCD Module

Are you in search of a top - notch LCD module for your diverse projects? The TFT - H014A3DQIST4N10 is here to meet all your expectations.

Exceptional Display Quality

This 1.44 - inch TFT LCD showcases a clear 128x128 pixel resolution. Paired with a bright LED backlight boasting a luminance of 350 cd/m2, it guarantees high - quality color image display. Whether it's an embedded system, industrial equipment, or a handheld device, the visuals will be sharp and vivid.

Efficient Connection Interface

Featuring a 4 - wire serial SPI interface and connected via pin headers, it significantly improves communication efficiency with popular devices like Arduino and C8051. This interface not only offers great flexibility but also enables fast data transmission. This paves the way for real - time updates, smooth animations, and dynamic visual effects, enhancing the overall user experience.

Compact and Power - Efficient

Despite its lack of touchscreen capabilities, its compact size and low power consumption (running on a 3.3 - volt power source) make it a perfect fit for projects where power conservation is crucial. The Multi - Domain Vertical Alignment (MVA) technology ensures stunning clarity even at viewing angles of up to 70°, making it ideal for portrait - mode visual output in projects that don't require touch functionality.

Environmentally Responsible

The display is RoHS compliant, strictly adhering to environmental and safety standards. This reflects our commitment to both environmental protection and user safety, ensuring that you can use the product with complete peace of mind.

In conclusion, the TFT - H014A3DQIST4N10 combines outstanding performance, flexibility, and reliability, making it an excellent choice for a wide range of modern electronic devices and projects.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H014A05QQTST3N10
Diagonal size	1.44”	Inch
Resolution	128x128	Dot
Dimensions	29x34.41x2.4	mm
Active area (AA)	25.5x26.5	mm
LCD type	1.44” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	ST7735
Brightness	350cd/m2	cd/m2
Operating temperature	-20~70℃	℃
