Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H034A04ZJIGCKC40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
800x800 Px |
Dimensions (mm): |
225.29x113.0x3.95 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
1000cd/m2 |
Interface: |
RGB |
Operating Temperature:: |
-30°C To 80°C |
Display Content: |
800x800 Px |
Dimensions (mm): |
225.29x113.0x3.95 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
1000cd/m2 |
Interface: |
RGB |
Operating Temperature:: |
-30°C To 80°C |

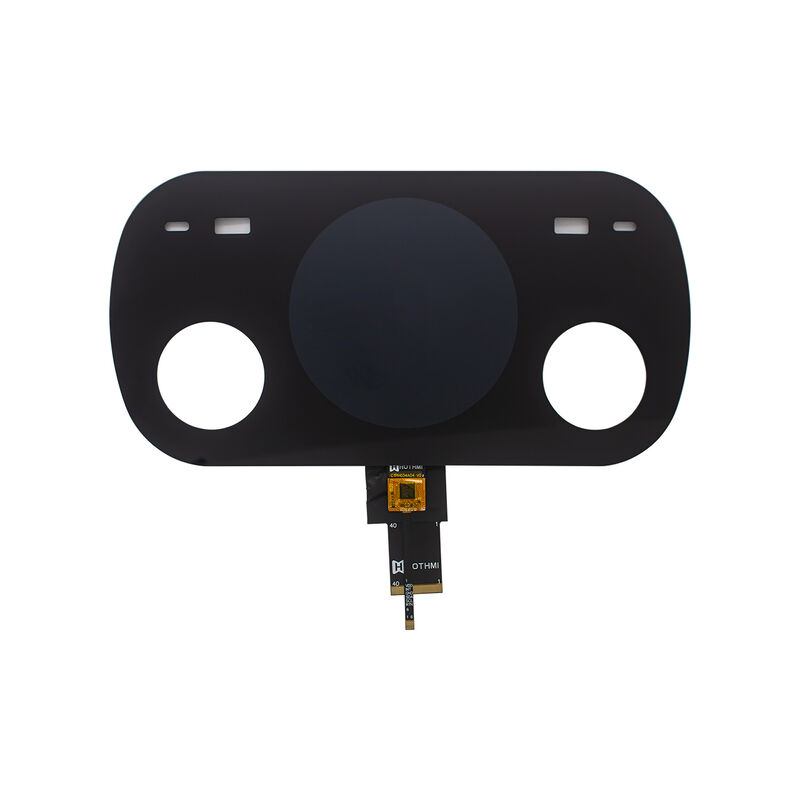

Define Your Interface with the 3.4 inch Round TFT LCD Display With uxTouch CTP
Introducing a breakthrough in compact display technology for modern outdoor and portable devices. The 3.4 inch Round TFT LCD Display With uxTouch CTP is engineered to merge superior visibility with bespoke design, making it the ideal choice for applications like electric vehicle dashboards, advanced instrumentation, and high-end portable electronics.
A key advantage of this 3.4 inch Round TFT LCD Display With uxTouch CTP is its fully customizable touch cover lens. The "uxTouch CTP" (Capacitive Touch Panel) technology provides a smooth, responsive multi-touch experience, while the large cover glass can be printed with unique patterns, logos, and functional icons. This allows you to create a seamlessly branded and aesthetically pleasing interface that is both modern and intuitive.
To conquer challenging lighting conditions, the 3.4 inch Round TFT LCD Display With uxTouch CTP delivers an ultra-high brightness of 1000 nits. This ensures that the 800x800 resolution display remains brilliantly clear and perfectly readable, even in direct sunlight. The IPS full viewing angle technology guarantees consistent color and clarity for viewers from any direction.
Built to endure harsh environments, this robust 3.4 inch Round TFT LCD Display With uxTouch CTP features a wide operating temperature range from -30°C to 80°C and high ESD protection of 8kV. Its durability ensures reliable performance in demanding outdoor and industrial settings. For your next project that demands a perfect blend of style, durability, and performance, the 3.4 inch Round TFT LCD Display With uxTouch CTP stands as the definitive solution.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H034A04ZJIGCKC40 | |
| Diagonal size | 3.4” | Inch |
| Resolution | 800x800 | Dot |
| Dimensions | 225.29x113.0x3.95 | mm |
| Active area (AA) | 87.6x87.6 | mm |
| LCD type | 3.4” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:1 | |
| Backlight type | LED white | |
| TFT driver IC | -- | |
| Brightness | 1000cd/m2 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -40~90℃ | ℃ |
