Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H080D14XGIJDKG40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
1024x768 Px |
Dimensions (mm): |
192.2x160.1x7.8 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
1000cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-30°C To 80°C |
Display Content: |
1024x768 Px |
Dimensions (mm): |
192.2x160.1x7.8 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
1000cd/m2 |
Interface: |
LVDS |
Operating Temperature:: |
-30°C To 80°C |
Superior Visual Performance: Utilizes a high-brightness backlight and LVDS interface, ensuring vivid, clear, and stable images without flickering, even under direct sunlight or bright ambient light.
Enhanced Durability & Protection: Integrated robust cover glass provides effective defense against scratches, impacts, dust, and moisture, significantly improving reliability and operational lifespan in demanding environments.
Professional Application Assurance: Designed specifically for applications requiring high performance and reliability, such as industrial instrumentation, medical equipment, and outdoor kiosks, aiming to reduce the total cost of ownership.

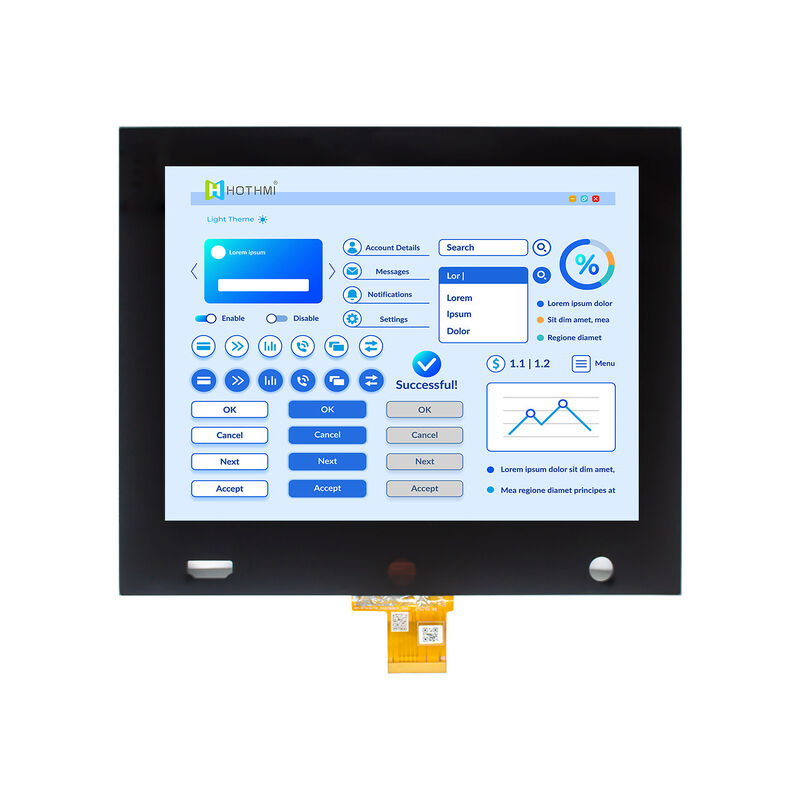

Product Positioning: An industrial-grade 8-inch display solution that combines excellent visual performance with a rugged construction.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H080D14XGIJDKG40 | |
| Diagonal size | 8.0” | Inch |
| Resolution | 1024x768 | Dot |
| Dimensions | 192.2x160.1x7.8 | mm |
| Active area (AA) | 162.048x121.536 | mm |
| LCD type | 8.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | - | |
| Brightness | 1000cd/m2 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
