Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H028A26QVTST3N14
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
240x320 Px |
Dimensions (mm): |
50.0x69.2x2.32 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
300cd/m2 |
Interface: |
SPI |
Operating Temperature:: |
-20°C To +70°C |
Display Content: |
240x320 Px |
Dimensions (mm): |
50.0x69.2x2.32 |
Field Of View Window Size: |
IPS(U80/D80/L80/R80) |
Backlight Brightness: |
300cd/m2 |
Interface: |
SPI |
Operating Temperature:: |
-20°C To +70°C |

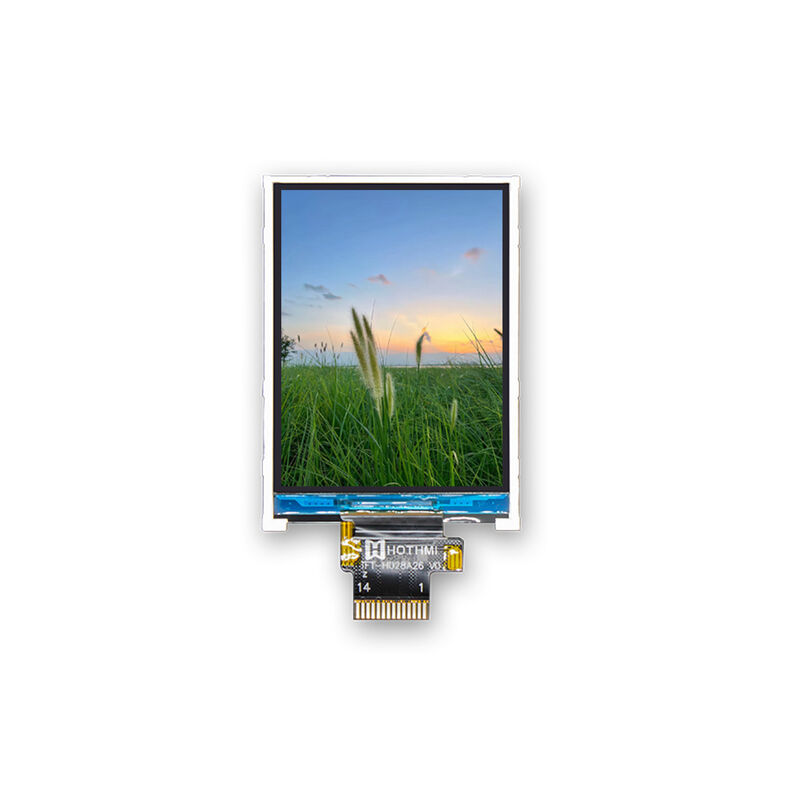

This 2.8 inch SPI TFT LCD Display is a high-performance module engineered for reliability and versatility. With a crisp 240x320 pixel resolution on a vibrant IPS panel, it ensures excellent color reproduction and a full viewing angle from any direction. The display is driven via an efficient SPI interface, offering a simple connection with minimal pins for streamlined integration into space-constrained designs.
Featuring a robust 300 cd/m² backlight for clear visibility and an operating temperature range of -20°C to +70°C, this durable 2.8 inch SPI TFT LCD Display is built to perform in demanding environments. Its ESD protection of up to 8kV and stable 3.3V power supply further enhance its reliability for industrial applications.Ideal for instrumentation and portable electronic devices, this compact module provides an optimal blend of screen size and form factor. Whether for data readouts, handheld terminals, or control interfaces, the 2.8 inch SPI TFT LCD Display delivers a dependable visual solution.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H028A26QVTST3N14 | |
| Diagonal size | 2.8” | Inch |
| Resolution | 240x320 | Dot |
| Dimensions | 50.0x69.2x2.32 | mm |
| Active area (AA) | 43.2x57.6 | mm |
| LCD type | 2.8” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789 | |
| Brightness | 300cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
