Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Certification: RoHS
Model Number: HTM-0802B-11W-T5P-V03
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Show Contents: |
8x2 Character |
Outline Size(mm): |
58.0x32.0x10.3 |
Size Of View Window(mm): |
38.0x16.0 |
Display Size(mm): |
27.81x11.5 |
Point Spacing(mm): |
0.6x0.7 |
Connection Method PIN Number: |
16PIN |
Show Contents: |
8x2 Character |
Outline Size(mm): |
58.0x32.0x10.3 |
Size Of View Window(mm): |
38.0x16.0 |
Display Size(mm): |
27.81x11.5 |
Point Spacing(mm): |
0.6x0.7 |
Connection Method PIN Number: |
16PIN |

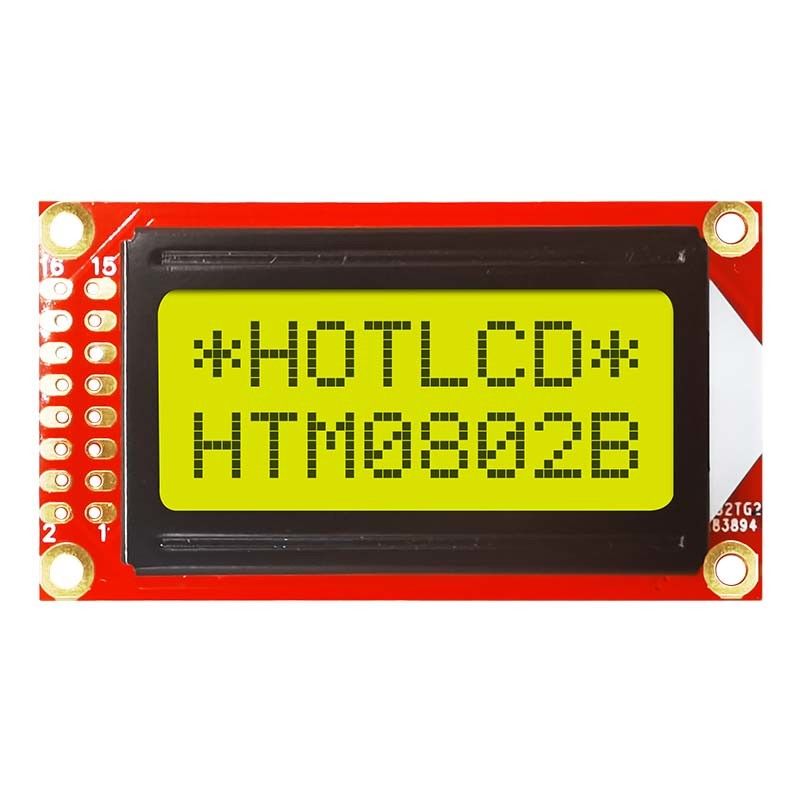

2X8 Character LCD | STN+ Gray Display with White Side Backlight 5.0V
HTM-0802B-11W-T5P-V03 is an 8x2 character LCD module. The voltage is preset to 5V. When 3V is used, the negative voltage can only supply 3V. HTM-0802B-11W-T5P-V03 8x2 LCD module is built-in ST7066U IC by default and supports 6800 interface;Arduino display
The module backlight is available in various combinations without backlight or with yellow-green/blue/white/amber/red/RGB backlight. A variety of font libraries are provided, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic, etc.
Quick detail
▶ Product type:Character LCM
▶ Show contents:8x2Character
▶ Outline size(mm) :58.0x32.0x10.3
▶ Size of View Window(mm):38.0x16.0
▶ Display size(mm) :27.81x11.5
▶ Point spacing(mm):0.6x0.7
▶ Product application:Instrumentation
▶ Visual angle:6H
▶ Backlight type or brightness:white
▶ Connection PIN Number:16PIN
▶ Interface mode:MCU/8bit
▶ Special instructions:Anti-static ESD 8KV
▶ Working temperature:-20~70℃
▶ Power supply voltage:5.0v
