Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1602-8
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Outline Size(mm): |
84.0X44.0X13.5 |
Size Of View Window(mm): |
61.0X15.8 |
Display Size(mm): |
56.2X11.5 |
Point Spacing(mm): |
0.6X0.7 |
Type: |
COB, LCM |
Outline Size(mm): |
84.0X44.0X13.5 |
Size Of View Window(mm): |
61.0X15.8 |
Display Size(mm): |
56.2X11.5 |
Point Spacing(mm): |
0.6X0.7 |
Type: |
COB, LCM |

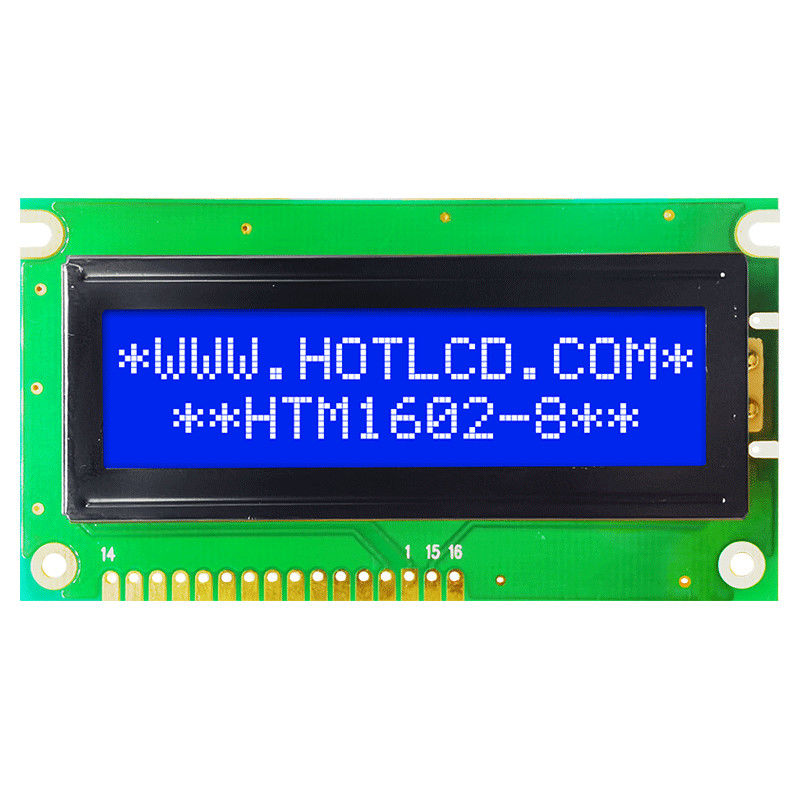

2X16 Character LCD/Green Backlight/HTM1602-8
Product Type - COB Standard Character LCM
Display content - 16x2 characters
Dimensions (mm) - 84.0x44.0x13.5
Viewport window size (mm) - 61.0x15.8
Display size (mm) - 56.2x11.5
Dot Spacing mm - 0.6x0.7
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-20~70℃)
Supply Voltage - 5.0v
