Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1602-10
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Show Contents: |
16x2 Character |
Outline Size(mm): |
85.0x29.5x13.1 |
Size Of View Window(mm): |
64.5x15.8 |
Display Size(mm): |
55.8x10.64 |
Point Spacing(mm): |
0.62X0.64 |
Backlight Type Or Brightness: |
Yellow-Green |
Show Contents: |
16x2 Character |
Outline Size(mm): |
85.0x29.5x13.1 |
Size Of View Window(mm): |
64.5x15.8 |
Display Size(mm): |
55.8x10.64 |
Point Spacing(mm): |
0.62X0.64 |
Backlight Type Or Brightness: |
Yellow-Green |

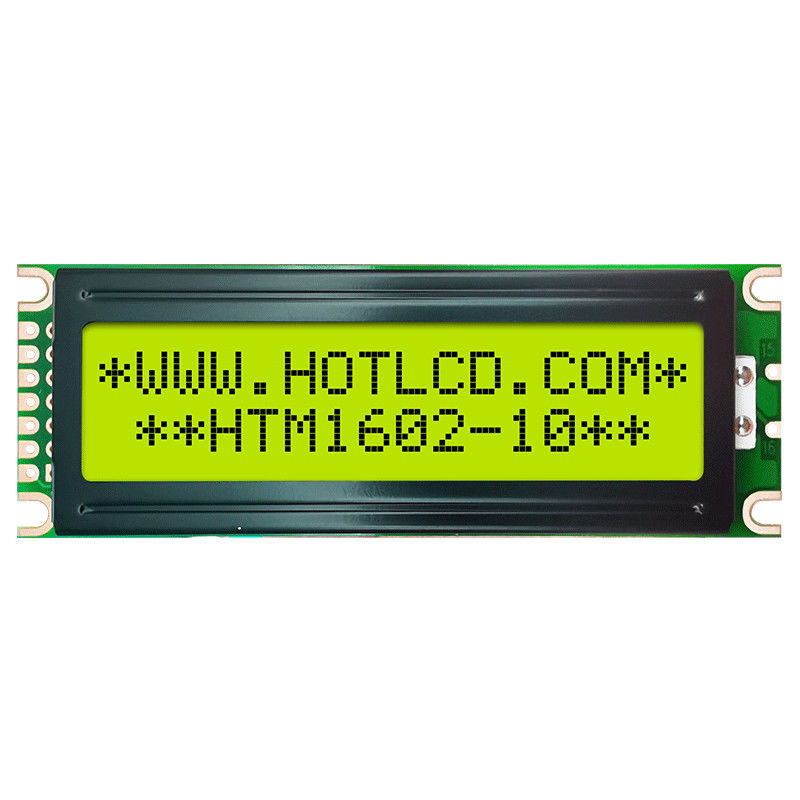

16X2 Character LCD | Yellow/Green Display with Yellow/Green Backlight/HTM1602-10
Quick detail
Product Type - Standard Character COB LCM
Display content - 16x2 characters
Dimensions (mm) - 85.0x29.5x13.1
Viewport window size (mm) - 64.5x15.8
Display size (mm) - 55.8x10.64
Dot Spacing mm - 0.62x0.64
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - White
Connection method PIN number - 16PIN
Interface - MCU/8bit
Operating temperature - (-20~70℃)
Supply Voltage - 5.0v
