Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM-1601A-35S-T5P-V03
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Outline Size(mm): |
80.0x36.0x13.1 |
Size Of View Window(mm): |
64.5x16.0 |
Display Size(mm): |
59.46x5.96 |
Point Spacing(mm): |
0.65x0.75 |
DRIVER IC: |
ST7066U |
Outline Size(mm): |
80.0x36.0x13.1 |
Size Of View Window(mm): |
64.5x16.0 |
Display Size(mm): |
59.46x5.96 |
Point Spacing(mm): |
0.65x0.75 |
DRIVER IC: |
ST7066U |

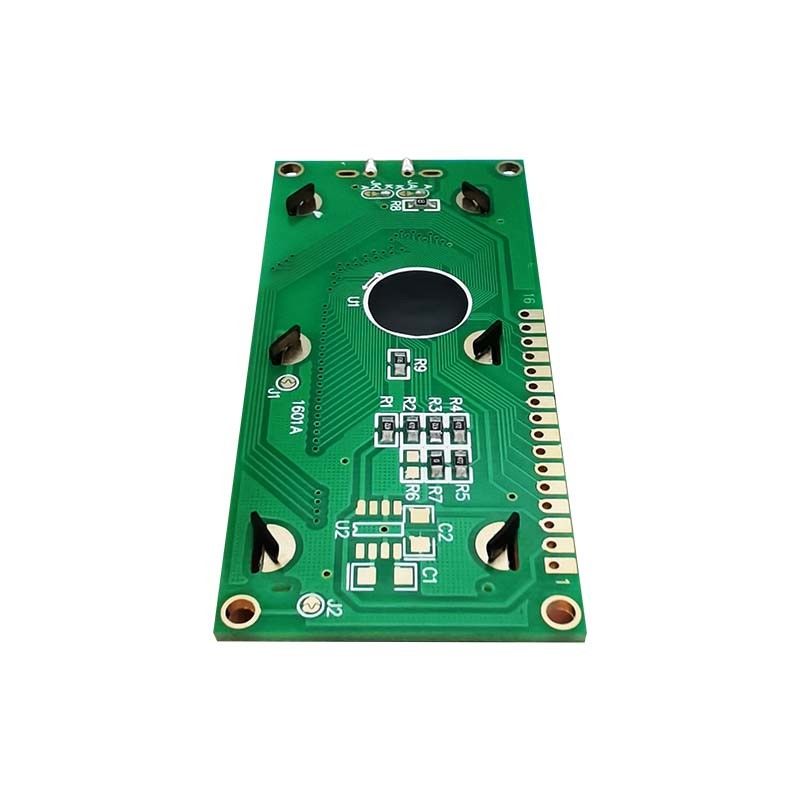

HTM-1601A-35S-T5P-V03 | 1x16 Character Display | Transflective LCD | RGB LED Backlight | FSTN (+) Positive Display
▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ View window size (mm): 64.5x16.0
▶ Display size (mm): 59.46x5.96
▶ Point spacing mm: 0.65x0.75
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: red/green/blue light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U
HTM-1601A-35S-T5P-V03 | 1X16 Character LCD Display | FSTN+ RGB Backlight-Arduino shows up to sixteen characters as one row each with sixteen
characters of dark pixels on a light gray background. The RGB display includes three backlight colors built into each display, which enables you
to choose from a red, green or a blue backlight color. You can also mix the intensities of those colors to create new custom colors.
This transflective LCD Display ensures excellent visibility with ambient light or in low light conditions with the built-in LED backlight. It features
a wide operating temperature range from -20 to 70 degrees Celsius. This Arduino compatible HTM-1601A-35S-T5P-V03 display has an optimal
view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.
The LCD display has a built-in ST7066U controller, ensuring high compatibility with various interfaces and development boards such as Arduino.
