Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1601C-11W-A5P
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Outline Size(mm): |
122.0x33.0x8.0 |
Size Of View Window(mm): |
99.0x13.0 |
Display Size(mm): |
94.73x9.56 |
Point Spacing(mm): |
1.17x1.04 |
DRIVER IC: |
ST7066U |
Outline Size(mm): |
122.0x33.0x8.0 |
Size Of View Window(mm): |
99.0x13.0 |
Display Size(mm): |
94.73x9.56 |
Point Spacing(mm): |
1.17x1.04 |
DRIVER IC: |
ST7066U |
1X16 Character LCD Display | STN+ Gray with White Side Backlight 5.0V-Arduino
▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

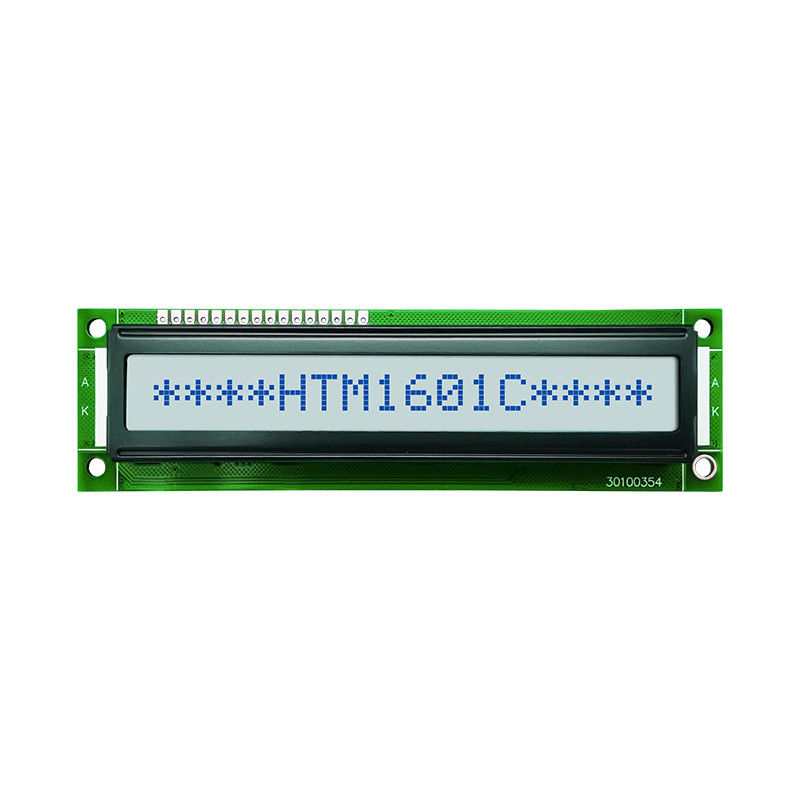

HTM1601C-11W-A5P character, monochrome LCD, displays 16 characters in one line with dark pixels on a gray background. This particular transflective LCD remains visible under ambient light or can be used in poor lighting conditions with the added backlight. The operating temperature range is -20 to 70 degrees Celsius. The viewing angle is 6:00, and it operates with a supply voltage of 5.0V and comes with a built-in ST7066U controller. This RoHS-compliant eight-character display is compatible with Arduino and other similar development boards.
