Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1601C-35S-A5P
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Outline Size(mm): |
122.0x33.0x8.0 |
Size Of View Window(mm): |
99.0x13.0 |
Display Size(mm): |
94.73x9.56 |
Point Spacing(mm): |
1.17x1.04 |
DRIVER IC: |
ST7066U |
Outline Size(mm): |
122.0x33.0x8.0 |
Size Of View Window(mm): |
99.0x13.0 |
Display Size(mm): |
94.73x9.56 |
Point Spacing(mm): |
1.17x1.04 |
DRIVER IC: |
ST7066U |

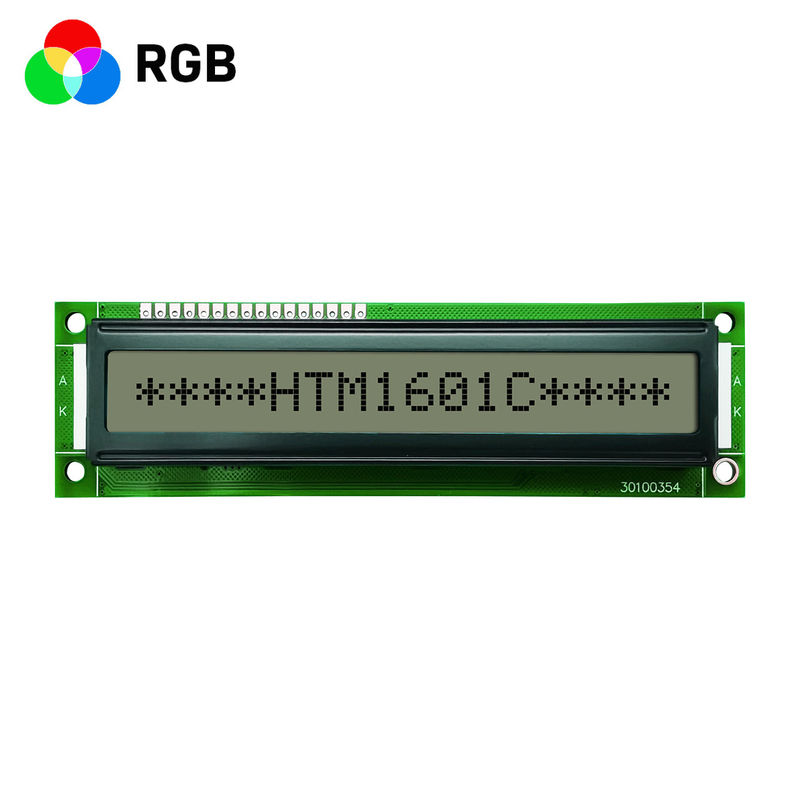

1X16 Character LCD Display | FSTN+ with RGB Backlight-Arduino
▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: red/green/blue light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U
Hot Display character Liquid Crystal Display shows characters with dark pixels on a light background. The RGB display includes three backlight colors built into each display, which enables you to choose from a red, green or a blue backlight color. You can also mix the intensities of those colors to create new custom colors. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM1601C-35S-A5P serial interface display is fully compatible with Arduino, making it a convenient choice for DIY electronics projects and educational purposes. With an optimal view of 6:00, it operates at 5.0V supply voltage and is RoHS compliant.
