Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: 15-Inch Natural Gas Machine Display LCD Module
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Product Type: |
15-Inch Natural Gas Machine Display LCD Module |
Visual Angle: |
6H |
Backlight Type Or Brightness: |
WHITE |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.0v |
Product Type: |
15-Inch Natural Gas Machine Display LCD Module |
Visual Angle: |
6H |
Backlight Type Or Brightness: |
WHITE |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.0v |

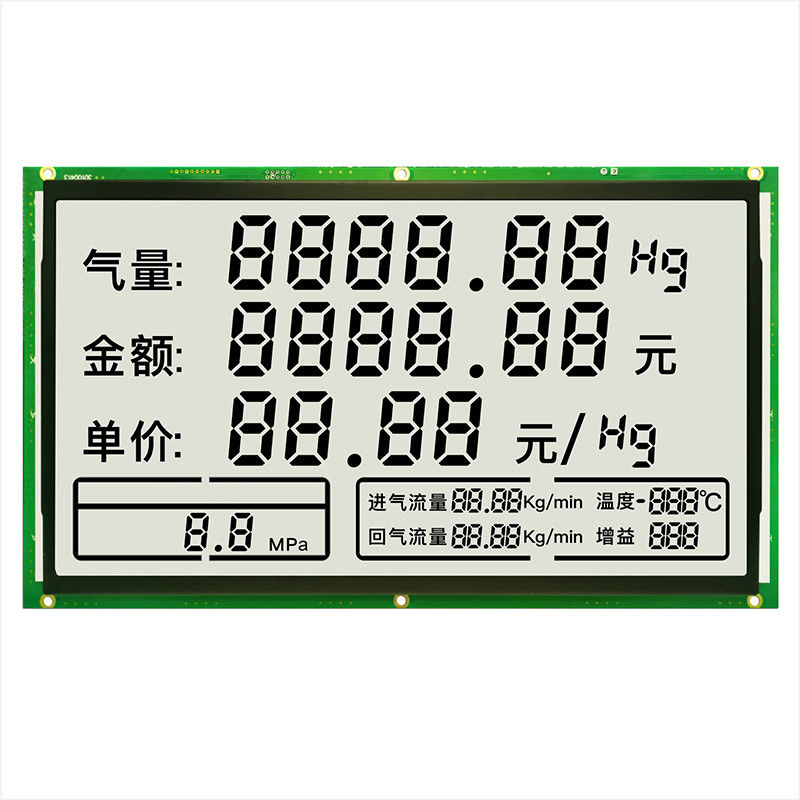

15-Inch Natural Gas Machine Display LCD Module
Parameters that customers need to provide for customized LCD screens:
Connection method: hot pressing paper, zebra strips, metal feet
Drive mode: 1/4DUTY 1/3BAIS (determined according to the IC used by the customer and customer requirements)
Product parameters
Dimensions (mm) - 105.46x67.11x4.5
Field of View Window Size (mm) - 4.3"
Display Dimensions (mm) - 4.3"
Effective size mm - 95.04x53.86
Product Application - Industrial Display/Household Appliances
Perspective - Full Perspective
Interface - 24Bit-RGB
Special Instructions - GT911 with CTP Capacitive Touch Chip
Working temperature - (-30~80℃)
General Feature:
| Item | Standard Value | Unit |
| Display Size | 4.3 | Inch |
| Number of Pixels | 480(H)*3(RGB)* 272(V) | dots |
| Active Area | 95.04x53.86 | mm |
| Outline Dimension | 105.46x67.11x4.5 | mm |
| Viewing Direction | Full O'clock | - |
| TFT Interface | 24Bit-RGB | - |
| TFT Driver IC | SC7283 | - |
| TFT Driver Condition | VCI=3.3V(Typ) | V |
| Backlight-1 | White LED/10 PCS/5 LEDs in series, 2 in parallel | - |
| Touch Panel | With CTP | - |
| CTP Driver IC | GT911 | - |
| CTP Driver Condition | VDD=3.3V(Typ) | V |
| Operation Temperature | -30 ～ 80 | ℃ |
| Storage Temperature | -30 ～ 85 | ℃ |
