Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM0802B
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Show Contents: |
8x2 Character |
Outline Size(mm): |
58.0X32.0X10.3 |
Size Of View Window(mm): |
38.0x16.0 |
Display Size(mm): |
27.81x11.5 |
Point Spacing(mm): |
0.6x0.7 |
Show Contents: |
8x2 Character |
Outline Size(mm): |
58.0X32.0X10.3 |
Size Of View Window(mm): |
38.0x16.0 |
Display Size(mm): |
27.81x11.5 |
Point Spacing(mm): |
0.6x0.7 |

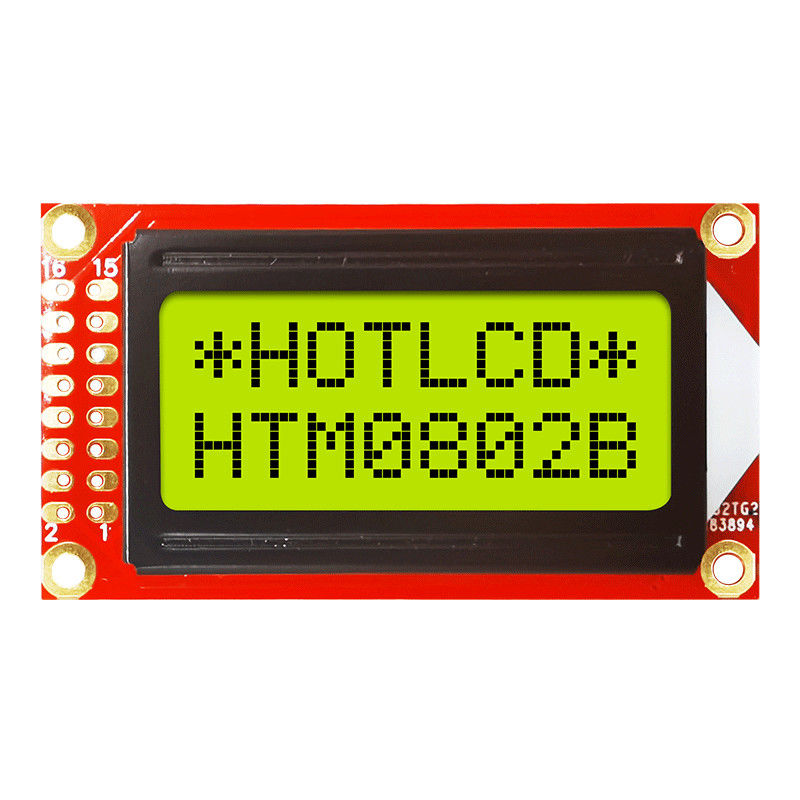

8X2 Character LCD | STN+ Yellow/Green Display with Yellow/HTM0802B
Quick detail
Product Type - Standard COB Character LCM
Display content - 8X2 characters
Dimensions (mm) - 58.0X32.0X10.3
Viewport window size (mm) - 38.0X16.0
Display size (mm) - 27.81X11.5
Dot Spacing mm - 0.6X0.7
Product Application - Instrumentation
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-10~60℃)
Supply Voltage - 5.0v
Interface Pin function
| Pin No. | Pin Name | Function |
| 1 | VSS- | Power Supply |
| 2 | VDD- | Positive Power Supply |
| 3 | V0- | LCD Contrast Reference Supply |
|
4 |
RS1- |
0.Instruction register busy flag address Counter(for read) 1.Data register |
|
5 |
- R/W |
Select read or write 1: Write 1. Read |
| 6 | E- | Starts data read/write |
| 7 | D B 0 |
Data Bus Lines-8pin |
| 8 | D B 1 | |
| 9 | D B 2 | |
| 10 | D B 3 | |
| 11 | D B 4 | |
| 12 | D B 5 | |
| 13 | D B 6 | |
| 14 | D B 7 | |
| 15 | B LA+ | Backlight Positive |
| 16 | BLK- | -Backlight Negative |
