Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI

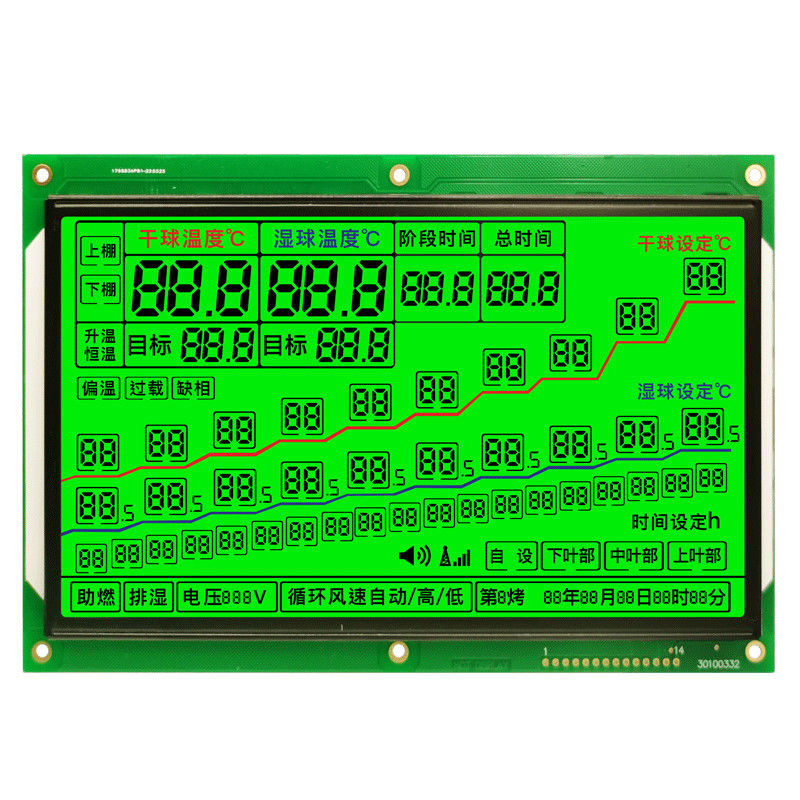

Model Number: Electronic Tobacco Machine Display Module
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Product Type: |
Electronic Tobacco Machine Display Module |
Visual Angle: |
6H O'clock |
Backlight Type Or Brightness: |
WHITE |
Working Temperature: |
0~50℃ |
Power Supply Voltage: |
5.0v |
Driver IC: |
HTM68228 |
Product Type: |
Electronic Tobacco Machine Display Module |
Visual Angle: |
6H O'clock |
Backlight Type Or Brightness: |
WHITE |
Working Temperature: |
0~50℃ |
Power Supply Voltage: |
5.0v |
Driver IC: |
HTM68228 |
Parameters that customers need to provide for customized LCD screens:
1, Size: length and width of large LCD screen, length and width of small LCD screen
2. Display mode: positive display (black characters on white background or black characters on yellow and green background or blue characters on gray background) or negative display (white characters on blue background or white characters on black background)
3. Polarizer type: fully transparent (fully transparent with a backlight), semi-transparent (with a backlight), reflective (without a backlight)
4. Working voltage: conventional voltage is generally 3V to 5V (according to customer requirements)
5. Working temperature: 0°C~50°C, -10°C~60°C, -20°C~70°C (wide temperature), -30°C~80°C (ultra wide temperature)
6. Display angle of view: 6 o'clock (from bottom to top), 12 o'clock (from top to bottom), 3 o'clock (from right to left), 9 o'clock (from left to right).
7, Connection method: hot pressing paper, zebra strips, metal feet
8, Drive mode: 1/4DUTY 1/3BAIS (determined according to the IC used by the customer and customer requirements)
