Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H013C4QQIST3N18
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Size: |
1.3" |
Product Type: |
TFT Square |
Display Content: |
240x240 |
Dimensions (mm): |
26.6x29.6x2.3 |
Display Size: |
1.3" |
Product Type: |
TFT Square |
Display Content: |
240x240 |
Dimensions (mm): |
26.6x29.6x2.3 |

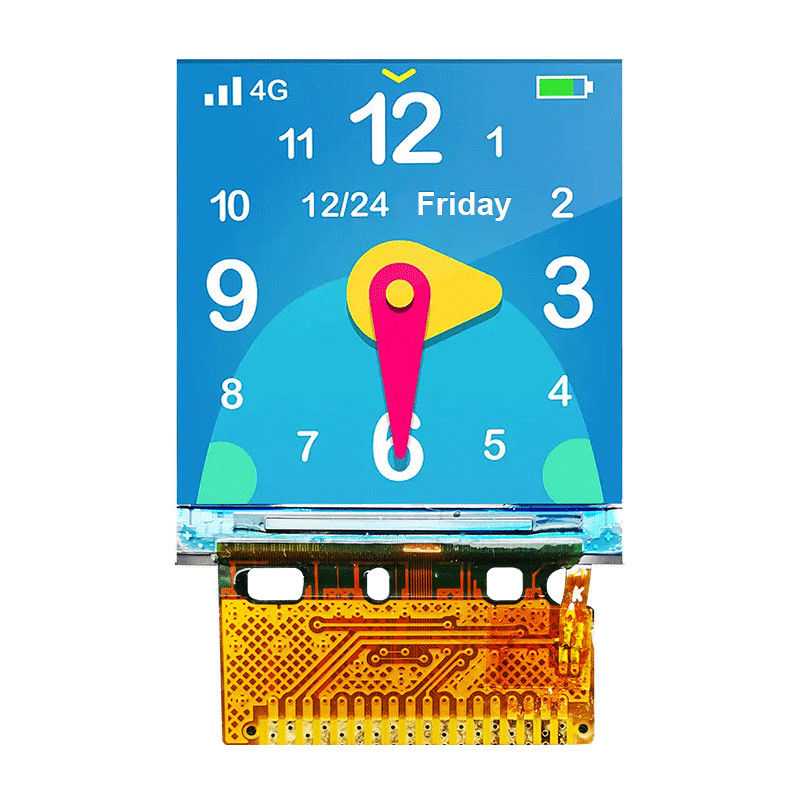

1.3 inch square TFT bear pie dedicated
Viewshed Window - 1.3"
Effective Size (mm) - 23.4x23.4
Product Application - Bear Pie
Perspective - Full Perspective
Backlight Type or Brightness - 350cd/m2
Connection method PIN number - 18PIN welding
Interface - SPI
Special Instructions - SPI 3L/4L
Working temperature - (-20~70 degrees)
Supply Voltage - 2.8V
Driver chip model - ST7789H2
Product Description
TFT-H013C4QQIST3N18 is a 1.3-inch full-color TFT LCD module with a resolution of 80x160 pixels and an aspect ratio of 1:2. The TFT module adopts ST7789H2 driver IC and supports SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is as high as 400 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
