Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM2002A
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Show Contents: |
20X2 Character |
Outline Size(mm): |
116.0x37.0x14.6 |
Size Of View Window(mm): |
83.0x18.6 |
Display Size(mm): |
75.4x11.5 |
Point Spacing(mm): |
0.65x0.7 |
Visual Angle: |
6H |
Show Contents: |
20X2 Character |
Outline Size(mm): |
116.0x37.0x14.6 |
Size Of View Window(mm): |
83.0x18.6 |
Display Size(mm): |
75.4x11.5 |
Point Spacing(mm): |
0.65x0.7 |
Visual Angle: |
6H |

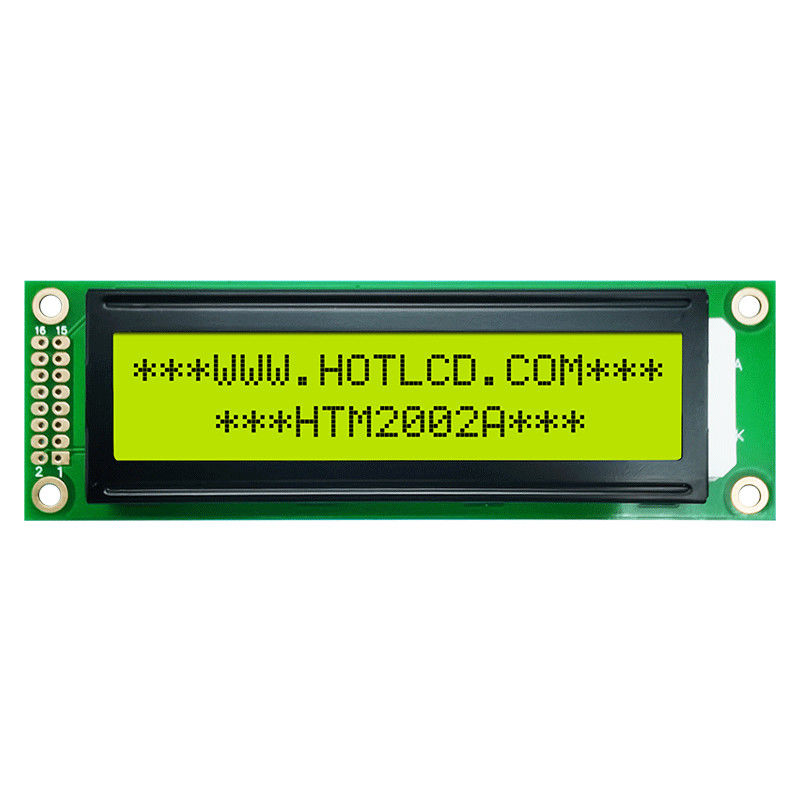

20x2 Character LCD | Green Backlight/HTM2002A
Quick detail
Product Type - Standard COB Character Module
Display content - 20X2 characters
Dimensions (mm) - 116.0X37.0X14.6
Viewport window size (mm) - 83.0X18.6
Display size (mm) - 75.4X11.5
Dot Spacing mm - 0.65X0.7
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-20~70℃)
Supply Voltage - 5.0v
Terminal Function
| Pin No. | Pin Name | Function |
| 1 | VSS | Power Supply, (0V) |
| 2 | VDD | Positive Power Supply (5.0V) |
| 3 | V0 | LCD Contrast Reference Supply |
|
4 |
RS |
Select Register 0:Instruction register (for write) busy flag address Counter(for read) 1:Data register (for write and read) |
|
5 |
R/W |
Select read or write 0: Write 1: Read |
| 6 | E | Starts data read/write |
| 7 | DB0 |
Data Bus Lines |
| 8 | DB1 | |
| 9 | DB2 | |
| 10 | DB3 | |
| 11 | DB4 | |
| 12 | DB5 | |
| 13 | DB6 | |
| 14 | DB7 | |
| 15 | BLA | Backlight Positive(5.0V) |
| 16 | BLK | Backlight Negative(VSS) |
Display Address
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | |
| Line 1 | 8 0 | 8 1 | 8 2 | 8 3 | 8 4 | 8 5 | 8 6 | 8 7 | 8 8 | 8 9 | 8A | 8B | 8C | 8D | 8E | 8F | 90 | 91 | 92 | 93 |
