Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1602A
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Show Contents: |
16x2 Character |
Outline Size(mm): |
80.0x36.0x13.1 |
Size Of View Window(mm): |
64.5x15.8 |
Display Size(mm): |
55.8x10.64 |
Point Spacing(mm): |
0.62x0.64 |
Show Contents: |
16x2 Character |
Outline Size(mm): |
80.0x36.0x13.1 |
Size Of View Window(mm): |
64.5x15.8 |
Display Size(mm): |
55.8x10.64 |
Point Spacing(mm): |
0.62x0.64 |

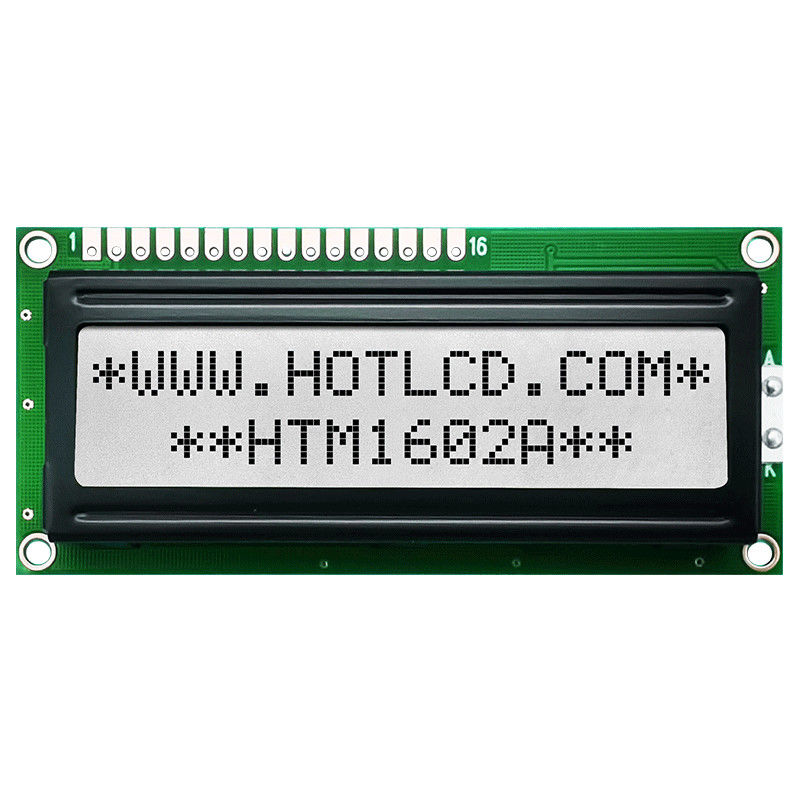

16x2 Character Medium Lcd/STN + Yellow/Green/HTM1602A
Quick detail
Product Type - Standard COB Character LCM
Display Content - Character 16x2
Dimensions (mm) - 80.0x36.0x13.1
Viewport window size (mm) - 64.5x15.8
Display size (mm) - 55.8x10.64
Dot Spacing mm - 0.62x0.64
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Operating temperature - (-20~70℃)
Supply Voltage - 5.0v
Terminal Function
| Pin No | Pin Name | Function |
| 1 | VSS- | Power Supply- (0V) |
| 2 | VDD+ | (5.0V)Positive Power Supply |
| 3 | V0- | LCD Contrast Reference Supply |
|
4 |
RS |
Select Register 0:Instruction register ,(for write) busy flag address Counter(for read) 1:Data register (for write and read) |
|
5 |
R/W- |
Select read or write 0: Write/ 1: Read |
| 6 | E | Starts data read/write |
| 7 | DB 0- |
Data Bus Lines |
| 8 | DB 1- | |
| 9 | DB 2- | |
| 10 | DB 3- | |
| 11 | DB 4- | |
| 12 | DB 5- | |
| 13 | DB 6- | |
| 14 | DB 7- | |
| 15 | BLA+ | Backlight Positive-(5.0V) |
| 16 | BLK- | (VSS) Backlight Negative |
