Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM1602-9
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999
Outline Size(mm): |
100.0x38.0x13.0 |
Size Of View Window(mm): |
80.0x20.5 |
Display Size(mm): |
76.37x16.02 |
Point Spacing(mm): |
0.83x0.98 |
Visual Angle: |
12H |
Outline Size(mm): |
100.0x38.0x13.0 |
Size Of View Window(mm): |
80.0x20.5 |
Display Size(mm): |
76.37x16.02 |
Point Spacing(mm): |
0.83x0.98 |
Visual Angle: |
12H |

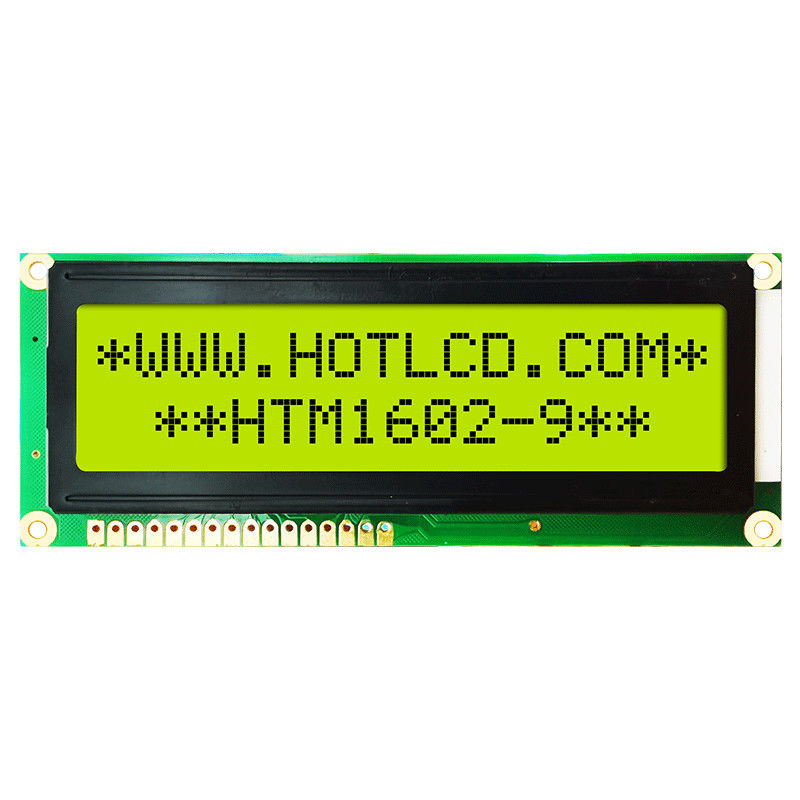

16X2 Character LCD | STN+ Yellow/Green Display with Yellow/Green Backlight
Quick detail
Product Type - Standard COB Character LCM
Display content - 16x2 characters
Dimensions (mm) - 100.0x38.0x13.0
Viewshed window size (mm) - 80.0x20.5
Display Size (mm) - 76.37x16.02
Dot Spacing mm - 0.83x0.98
Product Application - Industrial Equipment
Viewing Angle - 6H
Backlight Type or Brightness - White
Connection method PIN number - 16PIN
Interface - MCU/8bit
Operating temperature - (-20~70℃)
Supply Voltage - 5.0v
Interface Pin function
| Pin No. | Pin Name | Function |
| 1 | -VSS | Power Supply-(0V) |
| 2 | VDD6+ | Positive Power Supply- (5.0V) |
| 3 | V0 | LCD Contrast Reference Supply |
|
4 |
RS |
Select Register 1.Instruction register (for write) busy flag address Counter(for read) 2.Data register (for write and read) |
|
5 |
R/W |
Select read or write 0: Write 1. Read |
| 6 | E | Starts data read-write |
| 7 | D B0 |
Data Bus Lines |
| 8 | D B1 | |
| 9 | D B2 | |
| 10 | D B3 | |
| 11 | D B4 | |
| 12 | D B5 | |
| 13 | D B6 | |
| 14 | D B7 | |
| 15 | +BLA | Backlight Positive-(5.0V) |
| 16 | BLK | Backlight Negative-(VSS) |
