Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI

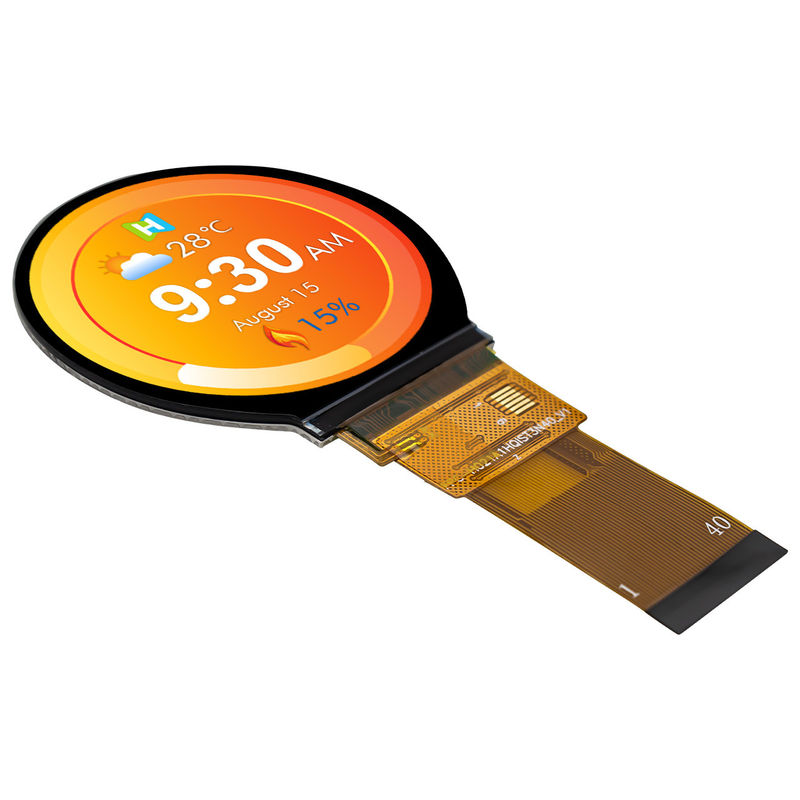

Model Number: TFT-H021A1HQIST4C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480×480 Dots |
Dimensions (mm): |
71.26 X 71.26 X 3.46 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
450cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |
Display Content: |
480×480 Dots |
Dimensions (mm): |
71.26 X 71.26 X 3.46 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
450cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |
Key Features:
Why Choose This Module?
Perfect for: Industrial controls, medical devices, portable electronics, and more!
Learn more about this versatile LCD module and elevate your display solutions today!
| Item | Standard Value | Unit |
| Display Size | 2.1 inch | -- |
| Number of Pixels | 480(H)x3(RGB)x480(V) | -- |
| Active Area | 53.28(H)x53.28(V) | mm |
| LCM Outline Dimension | 71.26(H)×71.26(V)×3.46(D) | mm |
| Viewing Direction | Full O'clock | - |
| LCM Interface | RGB+3 SPI | - |
| LCM Driver IC | ST7701S | - |
| Display colors | 16.7M | - |
| LCM Driver Voltage | IOVCC=1.8V,VCI=3.3V (Typ) | V |
| Backlight | White LED | - |
| Touch Panel | CTP Touch Panel | - |
| CTP Driver IC | CST826 | - |
| CTP Driver Voltage | 3.3 | V |
| CTP I/O Digital Voltage | 3.3 | V |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Pin Description
| Pin NO. | Symbol | Description |
| 1 | LED_A | LED Anode |
| 2,3 | LED_K | LED Cathode |
| 4 | GND | Ground |
| 5 | VCI | Analog Power |
| 6 | RESX | TFT Reset Pin |
| 7 | IM0 | The System interface mode select |
| 8 | IM1 | The System interface mode select |
| 9 | SDA | Serial data input/output bidirectional pin |
| 10 | SCL | Serial clock input |
| 11 | CS | A chip select signal |
| 12 | PCLK | Dot clock signal for RGB interface operation |
| 13 | DEN | Data enable signal for RGB interface operation |
| 14 | VSD | Frame synchronizing signal for RGB interface operation |
| 15 | HSD | Line synchronizing signal for RGB interface operation |
| 16-21 | DB0-DB5 | Data bus |
| 22-27 | DG0-DG5 | Data bus |
| 28-33 | DR0-DR5 | Data bus |
| 34 | GND | Ground |
| 35 | TP_VCI | Touch Power supply |
| 36 | TP_SCL | Touch IIC Clock signal |
| 37 | TP_SDA | Touch IIC Data signal |
| 38 | TP_INT | Touch Interrupt |
| 39 | TP_RES | Touch Reset Signal |
| 40 | GND | Ground |
