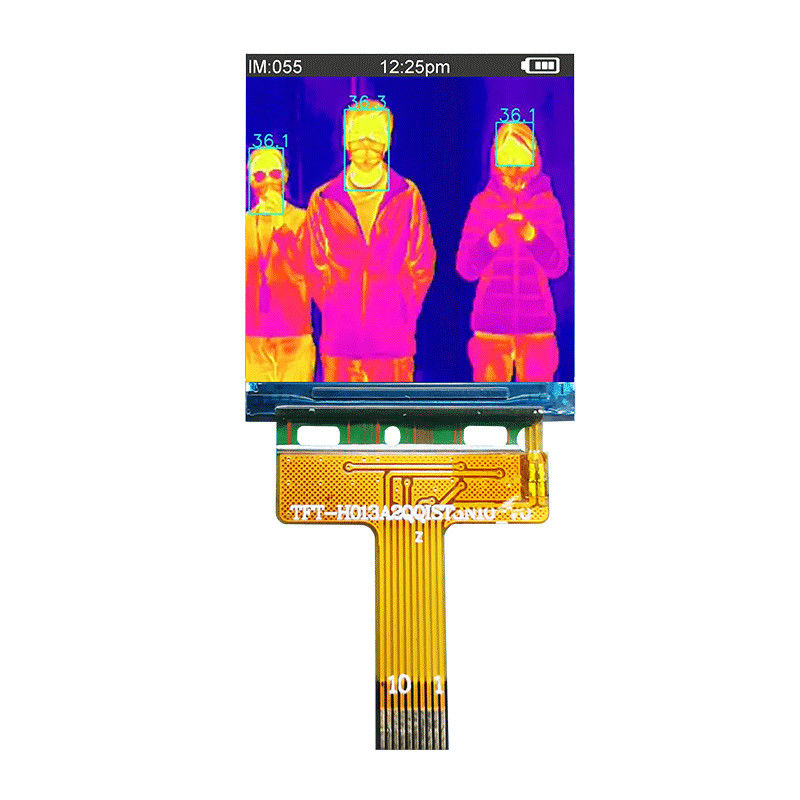

1.3 inch IPS TFT Display/240x240 Pixels/TFT-H013A2QQIST3N10
Product Type - TFT Square
Display Content - 240x240
Dimensions (mm) - 26.00×29.15×1.95
Viewshed Window - 1.3"
Perspective - Full Perspective
Connection method PIN number - FPC-10PIN
Interface - SPI
Supply Voltage - 2.8V
Driver chip model - ST7789H2
This 1.3-inch TFT color screen is very suitable for handheld infrared thermometer display (infrared thermometer display), supports SPI interface, and has the characteristics of square size, compact structure, high brightness, full viewing angle, and rich colors. The data is clear at a glance.
General Feature:
| Item | Standard Value | Unit |
| Display Size | 1.3” | -- |
| Number of Pixels | 240(H)x3(RGB)*240(V) | -- |
| Active Area | 23.40(H) *23.40(V) | mm |
| Outline Dimension | 26.00(H) ×29.15× 1.95(V) | mm |
| Viewing Direction | Free O'clock | - |
| Interface | SPI 4L | - |
| Driver IC | ST7789H2 | - |
| Driver Condition | VCI=2.8V | V |
| Backlight | White LED | - |
| Touch Panel | No Touch Panel | - |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Pin Description
| Pin NO. | Symbol | Description |
| 1 | LED-A | LED Anode(+3.2V/100mA) |
| 2 | VCI | Analog Power(2.65 ~ 3.3 V) |
| 3 | CS | Chip select input pin (“Low” enable). |
| 4 | RESX | Reset Pin |
| 5 | SCK | Serial interface clock. |
| 6 | SDA | SPI interface input pin. |
| 7 | D/CX | Display data/command selection pin. |
|
|
TE |
Tearing effect signal is used to synchronize MCU to frame memorywriting. |
| 9 | LED-K | LED Cathode |
| 10 | GND | Ground |
