Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H015A06QVIST3N10
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
172×320 Dots |
Dimensions (mm): |
19.65x36.76X1.6 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7778 |
Interface: |
4-line 8bit Serial I/F |
Operating Temperature:: |
-20~70℃ |
Display Content: |
172×320 Dots |
Dimensions (mm): |
19.65x36.76X1.6 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7778 |
Interface: |
4-line 8bit Serial I/F |
Operating Temperature:: |
-20~70℃ |

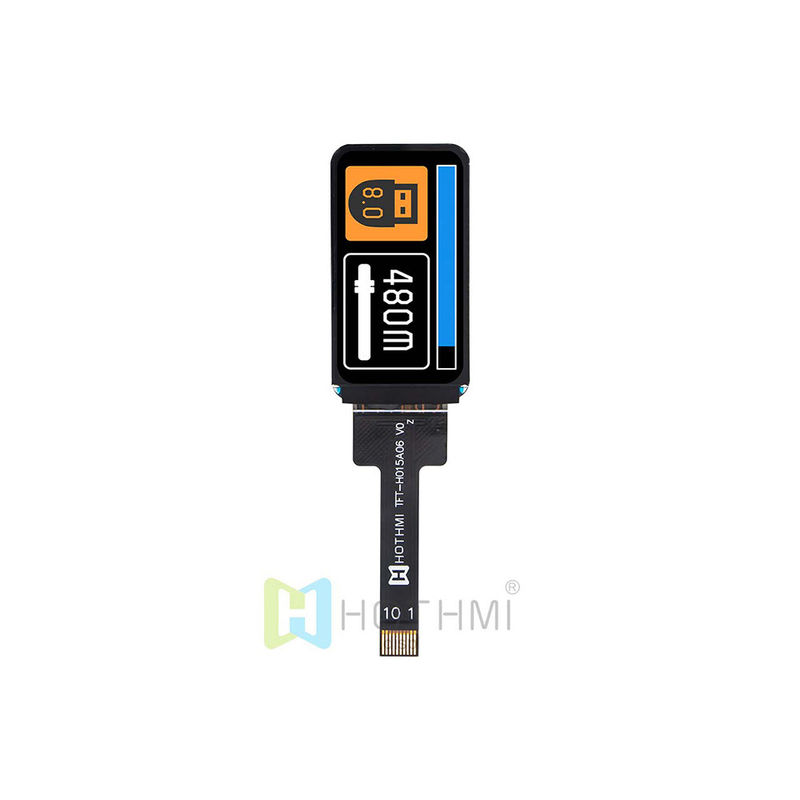

This TFT LCD display TFT-H015A06QVIST3N10 is composed of a 172x320 dot 1.5-inch color TFT LCD screen with an ST7778 controller. Excellent display quality, IPS full viewing angle, and a brightness of 300cd/m2 provide excellent viewing effects from any angle.
Easy to control by MCUs such as 8051, PIC, AVR, ARDUINO ARM, and Raspberry PI. It can be used for any embedded system, industrial equipment, security and handheld devices that require high-quality and color image display. It supports MCU interface. The product adopts a rubber iron integrated design,It is recommended to use black or moving images as screen protectors. Equipped with optional FPC zif connectors, easy to assemble or disassemble.
The surface of this display screen is a glass cover with rounded corners, and the shape can be customized according to actual needs. At the same time, we also provide the EZUI driver board module HTM-H015A06-485-A01 with RS485 interface,
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H015A06QVIST3N10 | |
| Diagonal size | 1.5” | Inch |
| Resolution | 320x320 | Dot |
| Dimensions | 19.65x36.76X1.6 | mm |
| Active area (AA) | 17.65*32.83 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | IPS Full View | |
| Aspect ratio | 1:1 | |
| Backlight type | white LED | |
| TFT driver IC | ST7778 | |
| Brightness | 300cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
