Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035A3HVIST5N50
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Vertical Screen |
Display Content: |
320x480 |
Dimensions (mm): |
54.76x83.58x2.5 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96x73.44 |
Product Application: |
Industrial Instrumentation, Medical |
Product Type: |
TFT Vertical Screen |
Display Content: |
320x480 |
Dimensions (mm): |
54.76x83.58x2.5 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96x73.44 |
Product Application: |
Industrial Instrumentation, Medical |

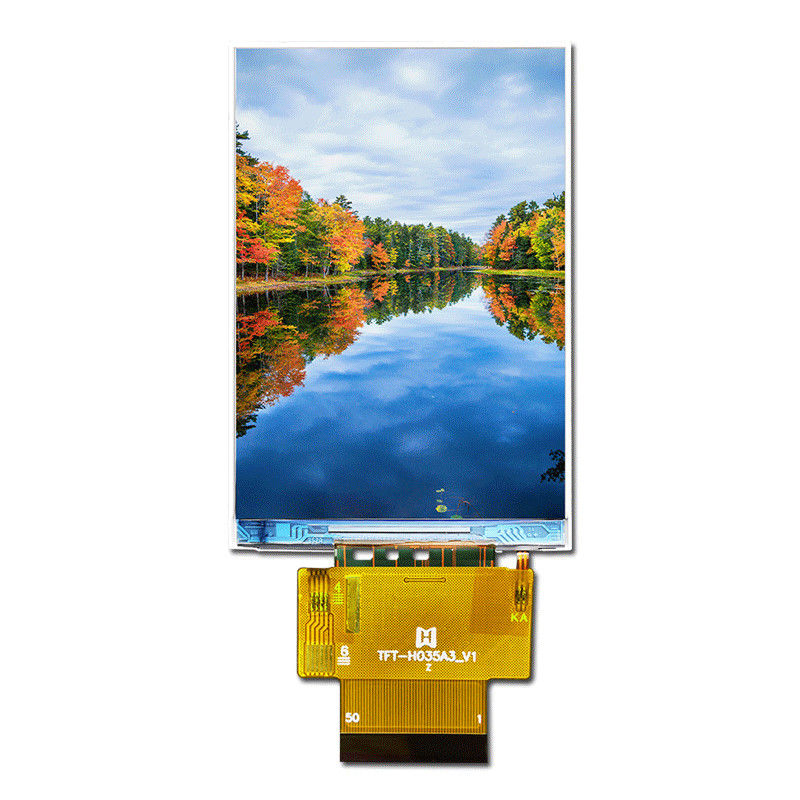

3.5" Sunlight Readable Compatible Interface TFT No Touch Screen/TFT-H035A3HVIST5N50
Product parameters
Display Size - 3.5"
Perspective - Full Perspective
Backlight brightness - 500cd/m2
Connection method PIN number - FPC-50PIN
Interface - MCU/SPI/RGB/MIPI
Working temperature - (-20~70℃)
Supply Voltage - 3.3v
Driver chip model - ST7796S
General Feature:
| Item | Standard Value | Unit |
| Display Size | 3.5” | -- |
| Number of Pixels | 320(H)x3(RGB)*480(V) | -- |
| Active Area | 48.96(H) *73.44(V) | mm |
| LCM Outline Dimension | 54.76(H) ×83.58× 2.50(V) | mm |
| Viewing Direction | Full O’Clock | - |
| LCM Interface | SPI,RGB,MCU,MIPI, Free to choose | - |
| LCM Driver IC | ST7796S | - |
| LCM Driver Voltage | VCI=2.8V | V |
| Backlight | White LED | - |
| Touch Panel | Without Touch Panel | - |
| CTP Driver IC | - - - | - |
| CTP Driver Voltage | VDD=2.8V | V |
| CTP I/O Digital Voltage | - - - | V |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Pin NO. | Symbol | Description | ||||||||
| 1 | LED_A | LED Anode | ||||||||
| 2 | LED_K | LED Cathode | ||||||||
| 3 | GND | Ground | ||||||||
| 4 | MIPI_DN |
♦ Positive polarity of low voltage differential data signal ♦ Leave the pin to open when not in use. |
||||||||
| 5 | MIPI_DP |
♦ Negative polarity of low voltage differential data signal ♦ Leave the pin to open when not in use. |
||||||||
| 6 | GND | Ground | ||||||||
|
7 |
MIPI_CN |
♦ Negative polarity of low voltage differential clock signal ♦ Leave the pin to open when not in use. |
||||||||
|
8 |
MIPI_CP |
♦ Positive polarity of low voltage differential clock signal ♦ Leave the pin to open when not in use. |
||||||||
| 9 | GND | Ground | ||||||||
| 10-12 | IM0-IM2 | The MCU interface mode select | ||||||||
| 13 | RESET | LCM Reset Pin. | ||||||||
| 14 | VSD |
♦ Vertical synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND. |
||||||||
| 15 | HSD |
♦ Horizontal synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND. |
||||||||
| 16 | PCLK |
♦ Dot clock signal for RGB interface. ♦ If not used, please fix this pin at GND. |
||||||||
| 17 | DEN |
♦ Data enable signal for RGB interface. ♦ If not used, please fix this pin at GND. |
||||||||
| 18-35 | DB17-DB0 | Data | Bus.If not | used, | please | fix | this | pin | at | GND. |
|
36 |
SPI_SDO |
♦ SPI interface output pin.If not used, let this pin open. ♦ The data is outputted on the falling edge of the SCL signal. |
||||||||
|
37 |
SPI_SDI |
♦ SPI interface input/output pin. ♦ The data is latched on the rising edge of the SCL signal ♦ If not used, please fix this pin at GND. |
||||||||
|
38 |
RDX |
♦ Read enable in 8080 MCU parallel IF. Low-active. ♦If not used, please fix this pin at GND. |
||||||||
|
39 |
WRX/SPI_SCL |
♦ Write enable in MCU parallel interface ♦ In SPI mode, this pin is used as SCL. ♦ If not used, please fix this pin at GND. |
||||||||
| 40 | DCX |
♦ Display data/command selection pin in parallel IF. ♦ If not used, please fix this pin at GND. |
|||||
| 41 | CSX/SPI_CS |
♦ Chip select input pin (“Low” enable). ♦ If not used, please fix this pin at GND. |
|||||
|
42 |
TE |
♦ Tearing effect signal is used to synchronize MCU to frame memory writing. ♦ If not used, please let this pin open. |
|||||
| 43 | VCI | Analog Power | |||||
| 44 | GND | Ground | |||||
| 45 | NC/CTP_VDD |
♦ Power supply ♦ If not used, |
input for CTP. please let this |
pin |
open. |
||
| 46 | NC/CTP-SCL |
♦ CTP Serial clock signal. ♦ If not used, please let this pin open. |
|||||
| 47 | NC/CTP-SDA |
♦ CTP Serial data input signal. ♦ If not used, please let this pin open. |
|||||
| 48 | NC/CTP-INT |
♦ CTP_External interrupt to the host. ♦ If not used, please let this pin open. |
|||||
| 49 | NC/CTP-RES |
♦ CTP Reset Pin. ♦ If not used, please |
let |
this |
pin |
open. |
|
| 50 | GND | Ground | |||||
