Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035B36HVTIL2R44
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
320x480 Dots |
Dimensions (mm): |
55.9x85.36x3.9 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7265 |
Interface: |
MCU |
Operating Temperature:: |
-20~70℃ |
Display Content: |
320x480 Dots |
Dimensions (mm): |
55.9x85.36x3.9 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7265 |
Interface: |
MCU |
Operating Temperature:: |
-20~70℃ |

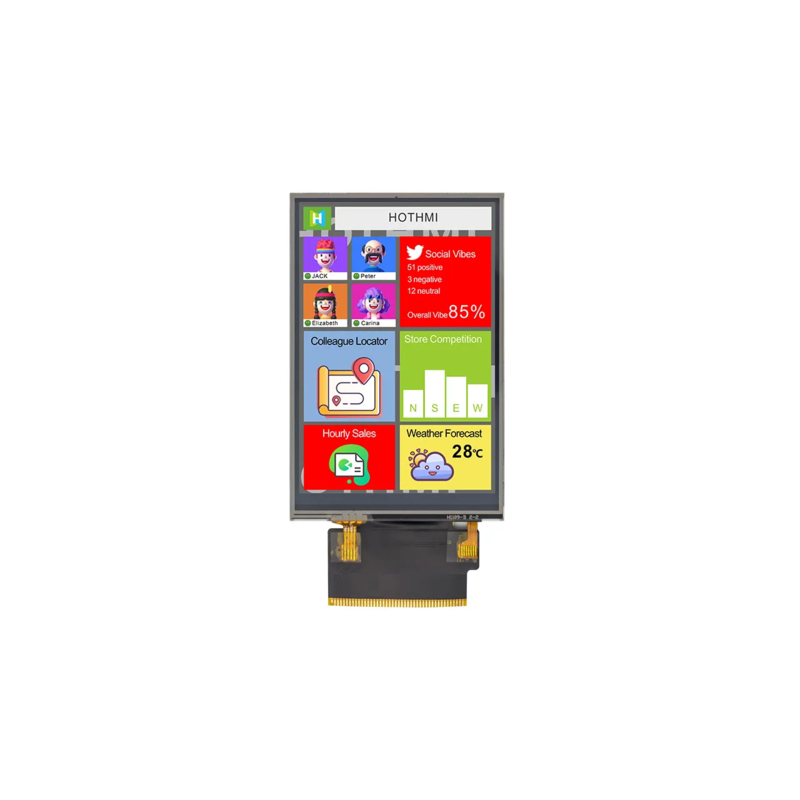

This 3.5-inch Resistive TFT LCD Display is a high-performance TFT LCD module designed for seamless integration with Arduino and other microcontroller platforms. With a sharp resolution of 320x480 pixels and an IPS wide viewing angle, this display delivers clear, vibrant visuals from every direction. The integrated resistive touchscreen offers precise and reliable input control, making it ideal for interactive projects.
Engineered for durability and versatility, this Resistive TFT LCD Display supports a 3.3V power supply and uses an MCU interface with a 44-pin FPC connector, ensuring easy connection and stable communication. It features high brightness (300 cd/m²), robust ESD protection up to 8KV, and an operating temperature range of -20°C to 70°C, making it suitable for use in instruments, portable devices, and industrial applications.
As a user-friendly Resistive TFT LCD Display, it is backed by professional manufacturer support and is compatible with popular controllers like the ST7265. Whether for prototyping or commercial use, this module offers an excellent balance of performance and affordability.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H035B36HVTIL2R44 | |
| Diagonal size | 3.5” | Inch |
| Resolution | 320x480 | Dot |
| Dimensions | 55.9x85.36x3.9 | mm |
| Active area (AA) | 48.96x73.44 | mm |
| LCD type | 3.5” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7265 | |
| Brightness | 300cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
