Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H024A13VGIST5N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x460 Dots |
Dimensions (mm): |
42.72x60.26x2.24 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |
Display Content: |
480x460 Dots |
Dimensions (mm): |
42.72x60.26x2.24 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |
If you need to purchase please contact https://www.display-lcd.com/

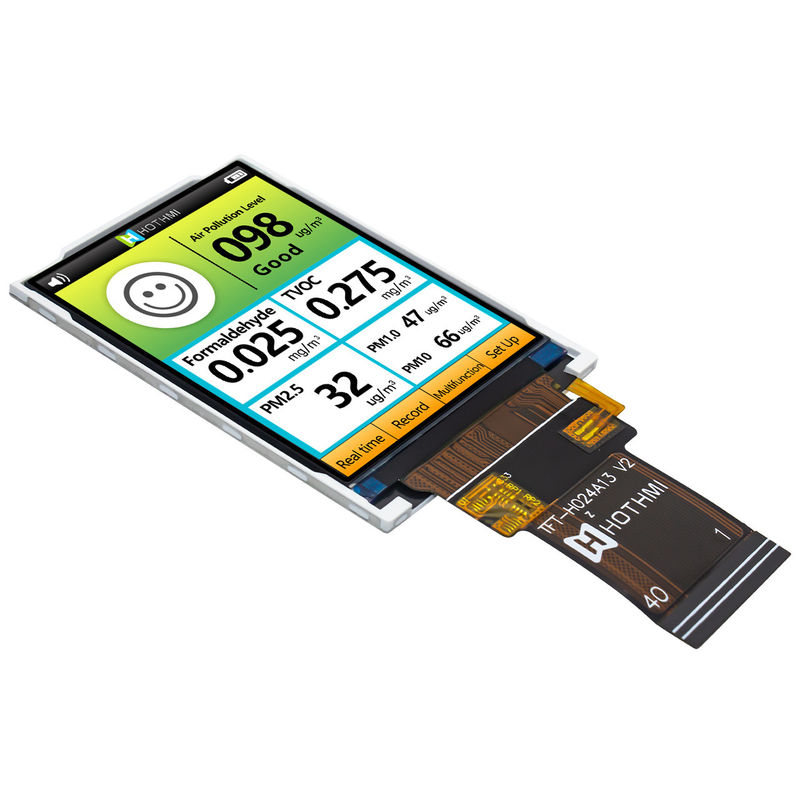

The TFT-H024A13VGIST5N40 2.4-inch IPS TFT LCD features a 480x640 pixel display resolution. The vertical TFT screen utilizes IPS with a full viewing angle, making it ideal for applications requiring a wide and clear viewing area. The display boasts a high brightness of up to 500cd/m², providing exceptional clarity in all lighting conditions and outstanding results even in challenging environments. This TFT LCD has been meticulously designed to achieve optimal performance in a variety of applications.
This display features an RGB interface and a 40-pin FPC connector, ensuring smooth communication and compatibility with the STM32/RK Series platform. The FPC cable provides developers with flexible and simple plug-in connection, allowing the display to be connected to the main control board. The ST7701S driver chip ensures efficient and reliable performance, making it particularly suitable for STM32/RK Series systems. The -30 to 80°C operating temperature range ensures this display performs exceptionally well in a variety of conditions.
In the same product series, we also offer the capacitive touch TFT-H024A16QVIST4C10 and a 2.4-inch resistive touch TFT LCD. For users lacking development capabilities, we also offer a 2.4-inch smart display. Our displays are all RoHS-compliant and adhere to strict environmental and safety standards.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H024A13VGIST5N40 | |
| Diagonal size | 2.4” | Inch |
| Resolution | 480x640 | Dot |
| Dimensions | 42.72x60.26x2.24 | mm |
| Active area (AA) | 36.72x48.96 | mm |
| LCD type | 2.4” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 500cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
