Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H020A4QVIST6N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
240x320 Dots |
Dimensions (mm): |
35.7x51.2x2.3 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7735 |
Interface: |
MCU |
Operating Temperature:: |
-30~85℃ |
Display Content: |
240x320 Dots |
Dimensions (mm): |
35.7x51.2x2.3 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7735 |
Interface: |
MCU |
Operating Temperature:: |
-30~85℃ |

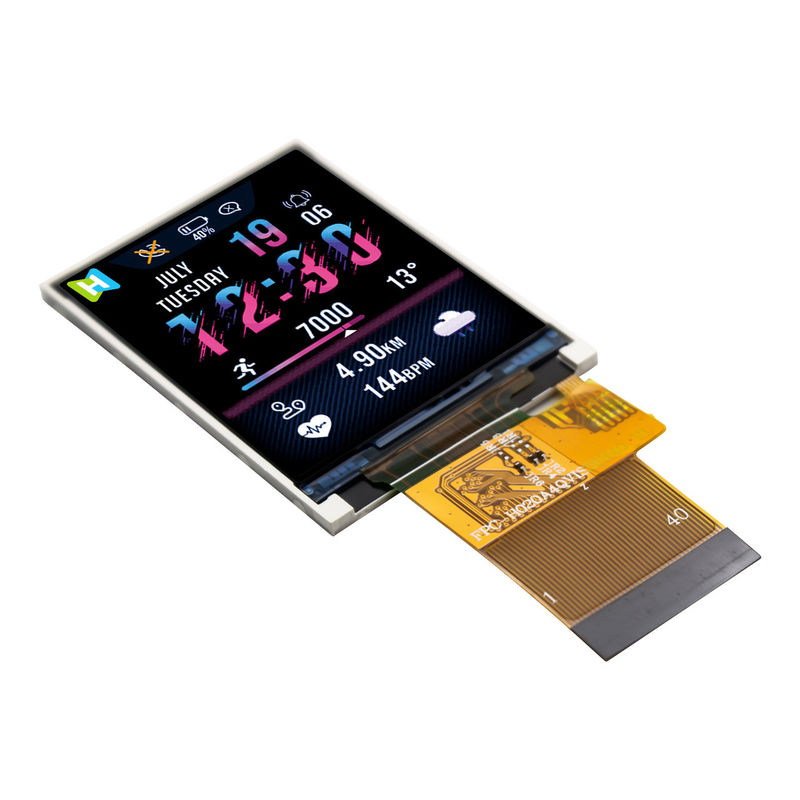

This 2.0-inch TFT display features a resolution of 240x320 pixels, an optimal viewing angle of IPS (Insulator-Based Display) with full viewing angles, and a high-brightness LED with 600 cd/m² brightness. This transmissive LCD boasts a compact size, full IPS viewing angles, and moderate brightness, resulting in a high-quality image.
This TFT LCD is powered by an ST7789V controller, delivering exceptional performance and reliability. This controller optimizes display functionality, ensuring smooth operation and accurate rendering of images and graphics. An MCU communication interface ensures efficient and stable information transmission. This model includes a flexible FPC cable that can be bent to suit specific needs, allowing users to easily connect the display to the driver board via plug-in or soldering. Custom cables are also available for custom cable shapes and lengths.
This model is available without a touchscreen, but we can also customize capacitive or resistive touchscreens. The display's cover glass can be customized with various features, including color, shape, and surface finish (AG/AR/AF). For the same size, users can also choose the 2-inch 176x220 resolution TFT-H020B5QCTST2N20 version, or the 2.0-inch 170x320 TFT LCD.
Our monitors are RoHS compliant and adhere to strict environmental and safety standards.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H020A4QVIST6N40 | |
| Diagonal size | 2.0” | Inch |
| Resolution | 240x320 | Dot |
| Dimensions | 35.7x51.2x2.3 | mm |
| Active area (AA) | 94.2x150.72 | mm |
| LCD type | 2.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789V | |
| Brightness | 600cd/m2 | cd/m2 |
| Operating temperature | -30~85℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
