Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H028A17QVTST2N37
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
240x320 |
Outline L X W X H:: |
50x69.2x2.3mm |
Active Area L X W:: |
43.2x57.6mm |
Luminance:: |
250cd/m2 |
Interface:: |
MCU |
Operating Temperature:: |
-20°C ~ 70°C |
Display Format:: |
240x320 |
Outline L X W X H:: |
50x69.2x2.3mm |
Active Area L X W:: |
43.2x57.6mm |
Luminance:: |
250cd/m2 |
Interface:: |
MCU |
Operating Temperature:: |
-20°C ~ 70°C |

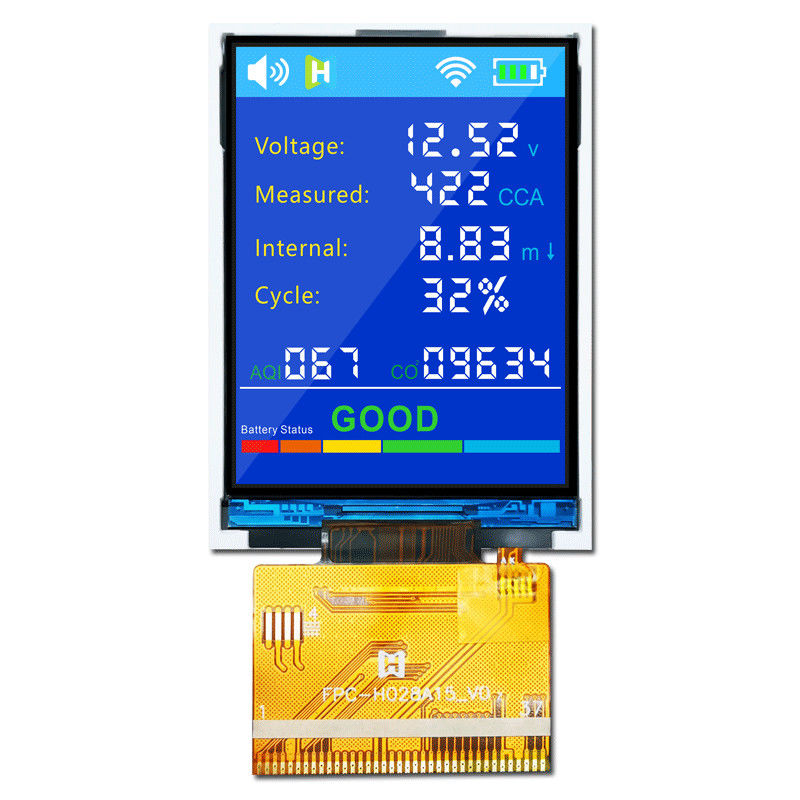

TFT-H028A17QVTST2N37 | 2.8 inch sunlight readable LCD | 240x320 pixels | MCU interface | FFC connection | optional touch screen
This 240x320 resolution LCD TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. The sunlight-readable display has a 3/4-wire MCU interface and provides a complete best view. This 3.3V LCD has a built-in T.B.D controller, FFC connection, RoHS Compliant, and optional touch screen.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H028A17QVTST2N37 | |
| Diagonal size | 2.8” | Inch |
| Resolution | 240X320 | Dot |
| Dimensions | 50.0*69.2*2.3 | mm |
| Active area (AA) | 43.2*57.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | U70/D40/R70/L70 | |
| Aspect ratio | 3:4 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789 | |
| Brightness | 250 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
