Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H080A12WSIHX6N50
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
1024x600 |
Dimensions (mm): |
192.80x116.90x6.55 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7789 |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |
Display Content: |
1024x600 |
Dimensions (mm): |
192.80x116.90x6.55 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7789 |
Interface: |
RGB |
Operating Temperature:: |
-20~70℃ |

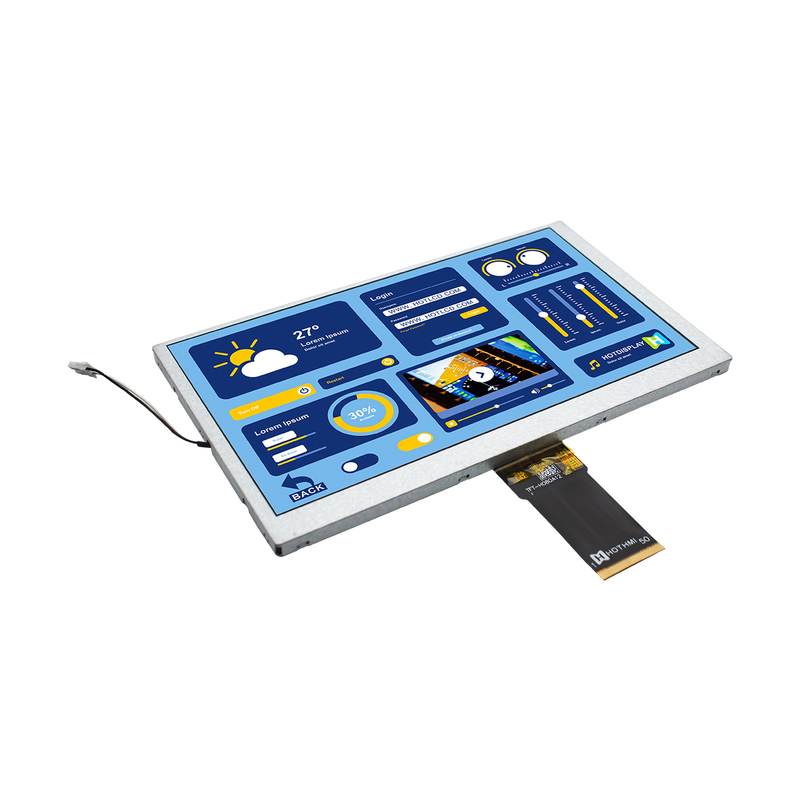

8.0 inch 1024x600 TFT LCD Display with RGB Interface
This 8.0-inch 1024x600 RGB interface TFT LCD display module adopts a high-definition resolution of 1024 (RGB) × 600 pixels, with an effective display area of 176.64mm × 99.36mm. With a 24-bit parallel RGB interface, it can present rich and delicate color performance, with a color gamut coverage of 67% (CIE1931 standard), meeting applications with high requirements for image quality.
This 8.0-inch 1024x600 RGB interface TFT LCD display product supports capacitive touch screen (CTP), with a surface hardness of 6H pencil hardness and a light transmittance of more than 80%, providing a sensitive and accurate touch experience. Its wide viewing angle characteristics (typical values: left/right 75°, top 70°, bottom 75°) ensure clear viewing at different angles, with a typical contrast ratio of 700:1. The module's operating temperature range covers -30℃ to +80℃, and the storage temperature is also -30℃~+80℃. It has passed strict environmental reliability tests (including high temperature and humidity, shock vibration and ESD protection) to adapt to harsh industrial environments.
The backlight system uses a high-efficiency LED solution with a typical brightness of 600cd/m² (with touch screen) and an LED life of up to 30,000 hours at 25℃. This brightness can be smoothly read by viewers in the sun. At the same time, this model's display is IPS full-viewing angle, and users can view the displayed content from different directions and angles.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H080A12WSIHX6N50 | |
| Diagonal size | 8.0” | Inch |
| Resolution | 1080x600 | Dot |
| Dimensions | 192.80x116.90x6.55 | mm |
| Active area (AA) | 176.64x99.36 | mm |
| LCD type | 8.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:1 | |
| Backlight type | LED white | |
| TFT driver IC | - | |
| Brightness | 600cd/m2 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
