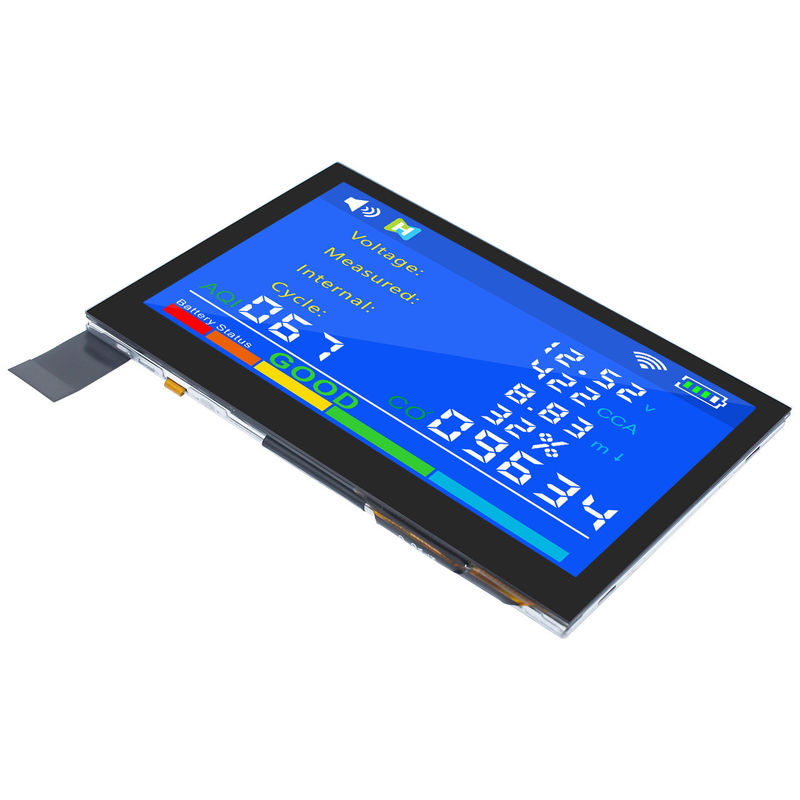

Discover the Superior 4.3-Inch TFT Display

Are you in search of a high-performance display solution? Look no further! Our 4.3-inch TFT display is packed with outstanding features that set it apart from the competition.

Precise Dimensions and Compact Design

With meticulous dimensional specifications, this display offers a perfect fit for various applications. The TFT and CTP combinations have well - defined dimensions, such as 4.21105.40±0.3 and 4.51±0.3<TFT + CTP>. The compact component area, with a maximum thickness of 1.5mm, makes it suitable for space - constrained devices.

Impressive Visual Performance

Boasting a resolution of 480(RGB)x272 pixels, it delivers and clear visuals. The normally black color gamut of NTSC 50% ensures rich and vivid colors, providing an immersive viewing experience whether you're using it for industrial monitoring, automotive displays, or consumer electronics. The LCM brightness of 800 cd/m² (Typ.) in constant current testing makes the screen easily visible even in bright environments.

Wide Operating Temperature Range

Designed to withstand extreme conditions, the TFT has a storage temperature range of -30 ℃ ~ +85 ℃ and an operating temperature range of -30 ℃ ~ +80 ℃. This wide temperature tolerance allows it to function reliably in diverse environments, from frigid outdoor settings to high - temperature industrial environments.

Versatile Interfaces and Stable Voltages

Equipped with U85/D85/R85/L85(Typ.) 8 - bit parallel interfaces, it offers seamless connectivity with various systems. The operating voltage range of VCI=3.0 ~ 3.3V and VDD=3.0 ~ 3.3V, along with the stable backlight drive conditions of Vf=12.0 ± 1.0V and If=80mA, ensure stable operation and energy - efficient performance.

In conclusion, our 4.3 - inch TFT display is the ideal choice for those seeking a reliable, high - performing display solution. Its combination of excellent visual quality, wide temperature range, and versatile interfaces makes it suitable for a wide variety of applications.
