Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM-H050A7-LVDS-C03
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
800x480 Pixels |
Outline L X W X H:: |
148x107 |
Active Area L X W:: |
108x64.8 |
Luminance: |
800cd/m2 |
Interface MCU SPI 4L: |
LVDS |
Operating Temperature:: |
-30°C~80°C |
Display Format:: |
800x480 Pixels |
Outline L X W X H:: |
148x107 |
Active Area L X W:: |
108x64.8 |
Luminance: |
800cd/m2 |
Interface MCU SPI 4L: |
LVDS |
Operating Temperature:: |
-30°C~80°C |

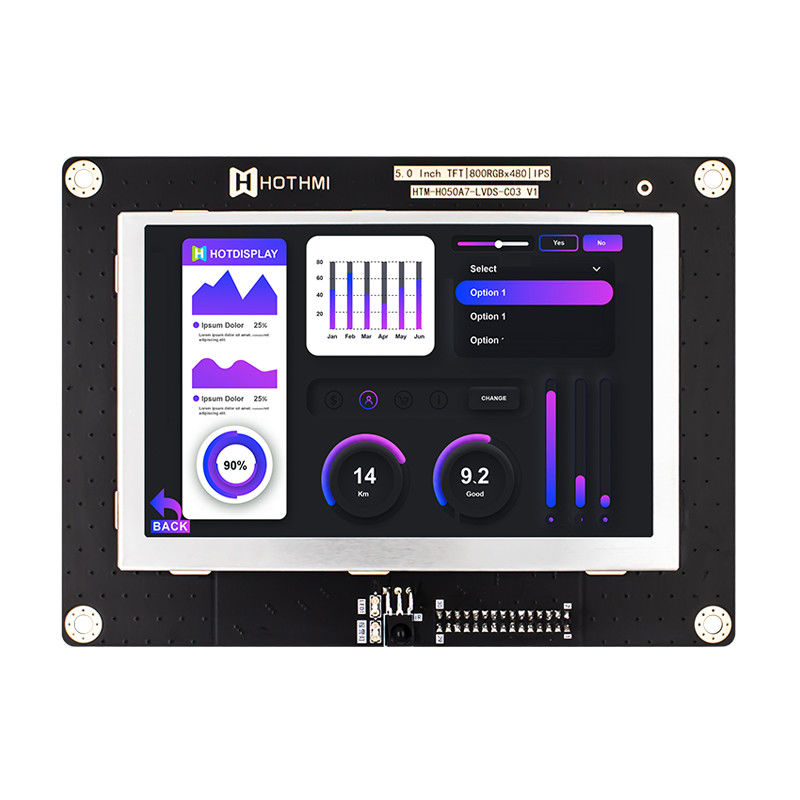

5.0 Inch IPS 800x480 Wide Temperature TFT LCD Module Display Panel LVDS
HTM-H050A7-LVDS-C03 | 5.0" IPS LCD Display | 800x480 Pixels | LCD Controller Board | Luminance 800cd/m2 | Interface LVDS | TFT MODULE | -30°C ~ 80°C | With Controller Board
Introducing the HTM-H050A7-LVDS-C03, a cutting-edge 5.0-inch IPS LCD display module designed to elevate your visual experience to new heights. With its remarkable features and impressive specifications, this display panel is engineered to perform flawlessly even in the most demanding environments.
Boasting a generous 800x480 pixel resolution, the HTM-H050A7-LVDS-C03 ensures that every image and detail displayed is rendered with exceptional clarity and precision. Whether you're immersed in multimedia content or analyzing intricate data sets, the vibrant colors and sharp visuals offered by this display will captivate your senses.
Equipped with a high luminance rating of 800cd/m2, this LCD display ensures that your visuals remain strikingly vivid even in challenging lighting conditions. From dazzling outdoor settings to brightly lit indoor environments, the HTM-H050A7-LVDS-C03 consistently delivers stunning image quality that catches the eye.
What sets this display module apart is its robust design tailored for versatility. With a wide temperature range of -30°C to 80°C, it operates reliably across extreme temperature variations, making it a perfect fit for a diverse range of applications. Whether it's in an industrial setting subject to temperature fluctuations or a rugged outdoor environment, you can trust this display to maintain its exceptional performance.
The HTM-H050A7-LVDS-C03 also features a LVDS interface, ensuring seamless connectivity and high-speed data transmission. This interface guarantees smooth communication between your devices, allowing you to fully harness the display's capabilities without any compromise.
To simplify your integration process, this TFT module comes complete with a controller board. This thoughtful inclusion enhances usability and reduces the complexity of setup, allowing you to focus on your project's core objectives rather than technical intricacies.
Experience the future of display technology with the HTM-H050A7-LVDS-C03. Elevate your projects, applications, and visuals with its impressive 5.0-inch IPS LCD panel, remarkable resolution, exceptional luminance, wide temperature tolerance, and hassle-free connectivity. Whether you're aiming to create immersive user interfaces or revolutionize data visualization, this display module is your gateway to unmatched quality and reliability.
General information
| project | Parameter Description | unit |
| TFT series | TFT embedded display module | |
| Diagonal size | 5.0” | Inch |
| Resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 148.0x107.0x6.5 | mm |
| Effective area (AA) | 108.0x64.8 | mm |
| LCD type | TFT module | |
| Display perspective | IPS(U80/D80/R80/L80) | |
| Aspect ratio | 1:2 | |
| Backlight type | LED, white | |
| TFT driver IC | ST7262 | |
| Touch panel | - | |
| Surface | Anti-glare | |
| Brightness | 800 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+85 | °C |
Search keyword: tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display,5 inch tft display, tft display 5, tft display 5"
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
