Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM020A01
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Dimensions (mm): |
35.7x51.2x4.0 |
Viewport Window Size: |
2.0" |
Effective Size (mm): |
30.60x40.80 |
Perspective: |
Full View |
Driver Chip Model: |
ST7789V |
Operating Temperature: |
-20~70℃ |
Dimensions (mm): |
35.7x51.2x4.0 |
Viewport Window Size: |
2.0" |
Effective Size (mm): |
30.60x40.80 |
Perspective: |
Full View |
Driver Chip Model: |
ST7789V |
Operating Temperature: |
-20~70℃ |

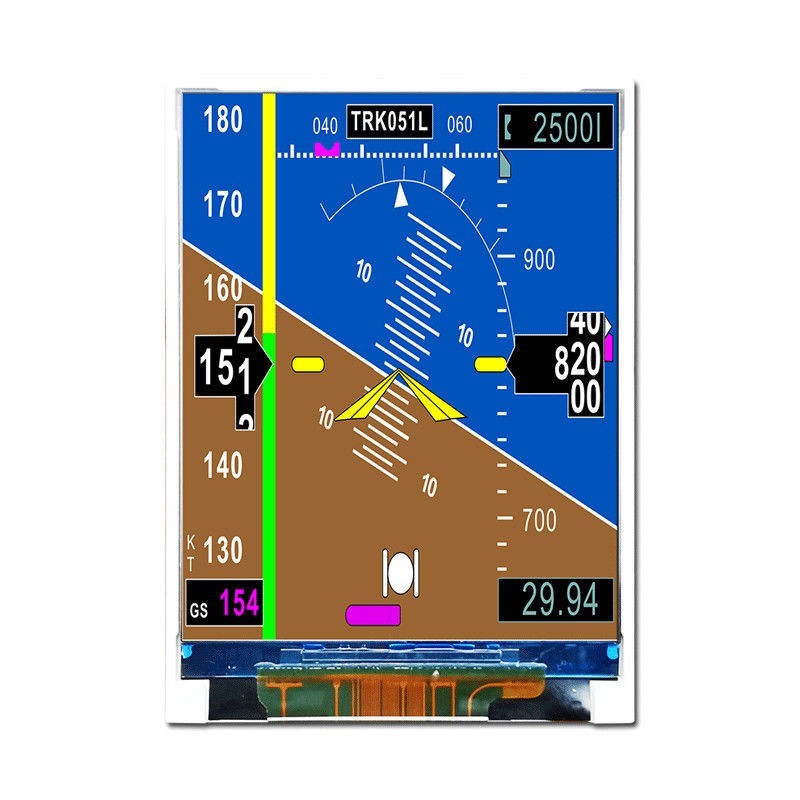

2.0 Inch Sunlight Readable SPI TFT Display/240x320 TFT LCD/HTM020A01
Product Type - TFT LCM
Display Content - 240x320
Display Dimensions (mm) - 2.0"
Product Application - Drone Remote Control
Backlight type or brightness - 850cd/m2
Connection method PIN number - 8PIN
Interface - MCU SPI-4L
Supply Voltage - 3.3V
HTM020A01 | 2.0" Sunlight Readable LCD | 240x320 Pixels | SPI Interface | Full View
This 240x320 resolution LCD TFT is equipped with a powerful backlight, providing visibility in bright lighting conditions including the direct sun. The sunlight readable display comes with 3/4-wire SPI interface and offers Full optimal view. This 3.3V Liquid Crystal Display has a built-in ST7789V controller, FFC connection, is RoHS compliant
General Feature:
| Item | Standard Value | Unit |
| Display Size | 2.0” | -- |
| Number of Pixels | 240(H)x3(RGB)x320(V) | -- |
| Active Area | 30.6(H) x40.8(V) | mm |
| Outline Dimension | 35.7(H) ×51.2(V)× 4(D) | mm |
| Viewing Direction | FULL O’Clock | - |
| Interface | 4-Line Serial Interface | - |
| Driver IC | ST7789V | - |
| Driver Condition | VCC =3.3 | V |
| Backlight | White LED | - |
| Touch Panel | No Touch Panel | - |
| TFT Operation Temperature | -20~70 | ℃ |
| TFT Storage Temperature | -30~80 | ℃ |
