Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H156FHDIK03-CTP
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
363.8x215.9 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
TBD |
Interface: |
LVDS |
Operating Temperature:: |
-30°C~85 °C |
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
363.8x215.9 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
TBD |
Interface: |
LVDS |
Operating Temperature:: |
-30°C~85 °C |

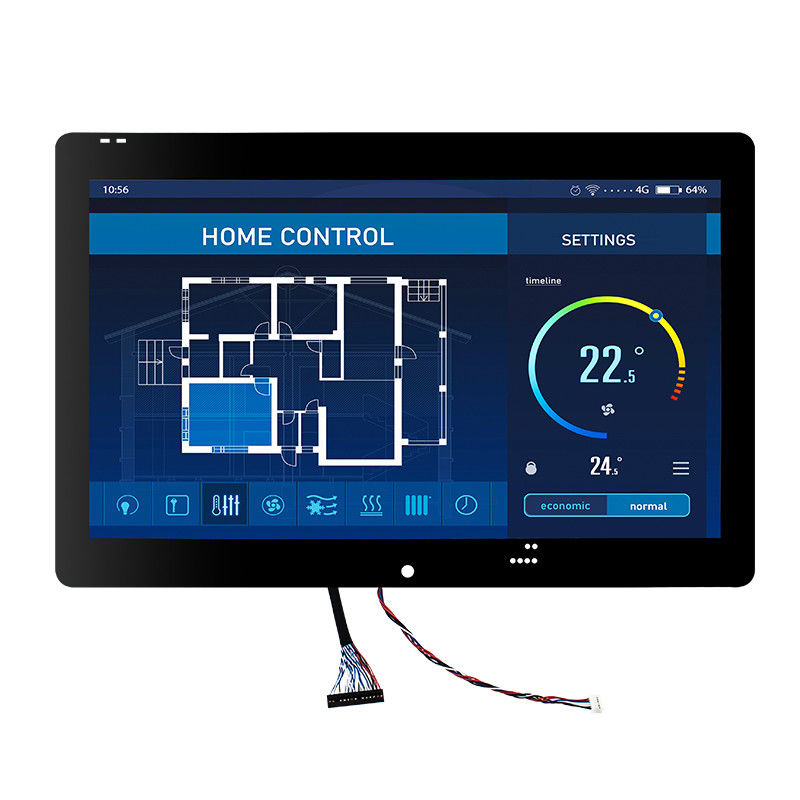

15.6 Inch IPS 1920x1080 Capacitive Touch Wide Temperature TFT Display Panel LVDS
TFT-H156FHDIK03-CTP | 15.6" IPS TFT LCD Display | TFT LCD Display Manufacturer | 1920x1080 HD resolution | -30℃~85℃ | For industrial computer | Interface LVDS | Wide Temperature | Capacitive Touch
Explore boundless vistas and immerse yourself in stunning detail! Introducing the TFT-H156FHDIK03-CTP, a high-performance 15.6-inch IPS TFT LCD display that redefines your visual experience.
Unparalleled high-definition resolution, with 1920x1080 pixels delivering crystal-clear images in every frame, revealing intricate details and providing an immersive visual delight.
Unfazed by temperature constraints, from freezing cold to scorching heat, our display panel performs consistently. With a wide operating temperature range of -30°C to 85°C, it ensures exceptional performance in diverse challenging environments, offering a dependable display solution for industrial computers and more.
Touch interaction at your fingertips. Equipped with advanced capacitive touch technology, it provides seamless and precise touch experiences, making operations intuitive and effortless. Whether it's control or navigation, tasks are effortlessly accomplished.
Versatile application possibilities, unveiling infinite opportunities. Be it in industrial automation, medical equipment, traffic information displays, or outdoor settings, our display panel seamlessly adapts, infusing cutting-edge display technology into your projects.
And that's not all. With an LVDS interface, we ensure high-speed and stable data transmission, elevating your system's performance for smooth efficiency.
TFT-H156FHDIK03-CTP is more than just a display panel; it's your partner in limitless innovation. In design, performance, and reliability, it stands as the unrivaled choice. Embark on a journey of state-of-the-art technology – starting here!
General Feature
| Item | Standard Value | Unit |
| Display Size | 15.6 | Inch |
| Number of Pixels | 1920(H)* 3(RGB)* (V) | dots |
| Active Area |
344.16x193.59
|
mm |
| Outline Dimension |
363.8x215.9
|
mm |
| Viewing Direction | Full View | - |
| TFT Interface | LVDS | - |
| TFT Driver IC | TBD | - |
| TFT Driver Condition | VCI=3.3V(Typ) | V |
| Backlight-1 | White LED/8 PCS/4 LEDs serial 2 ways parallel | - |
| Touch Panel | Capacitive Touch | - |
| CTP Driver IC | GT911 | - |
| CTP Driver Condition | VDD=3.3~12V(Typ) | V |
| Operation Temperature | -30 ～ 85 | ℃ |
| Storage Temperature | -30 ～ 85 | ℃ |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
