Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H070D12ZFIHX2N4
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
1200x1920 Dots |
Display Type: |
TFT Module |
Outline L X W X H: |
99.75x161.60x2.20 |
Active Area L X W: |
94.50x151.20 |
Luminance: |
350 Cd/m2 |
Interface: |
MIPI-4L |
Controller Type: |
HX8279 |
Connection Type: |
40 Pin |
Operating Temperature: |
-20 ~ 70°C |
Display Format:: |
1200x1920 Dots |
Display Type: |
TFT Module |
Outline L X W X H: |
99.75x161.60x2.20 |
Active Area L X W: |
94.50x151.20 |
Luminance: |
350 Cd/m2 |
Interface: |
MIPI-4L |
Controller Type: |
HX8279 |
Connection Type: |
40 Pin |
Operating Temperature: |
-20 ~ 70°C |

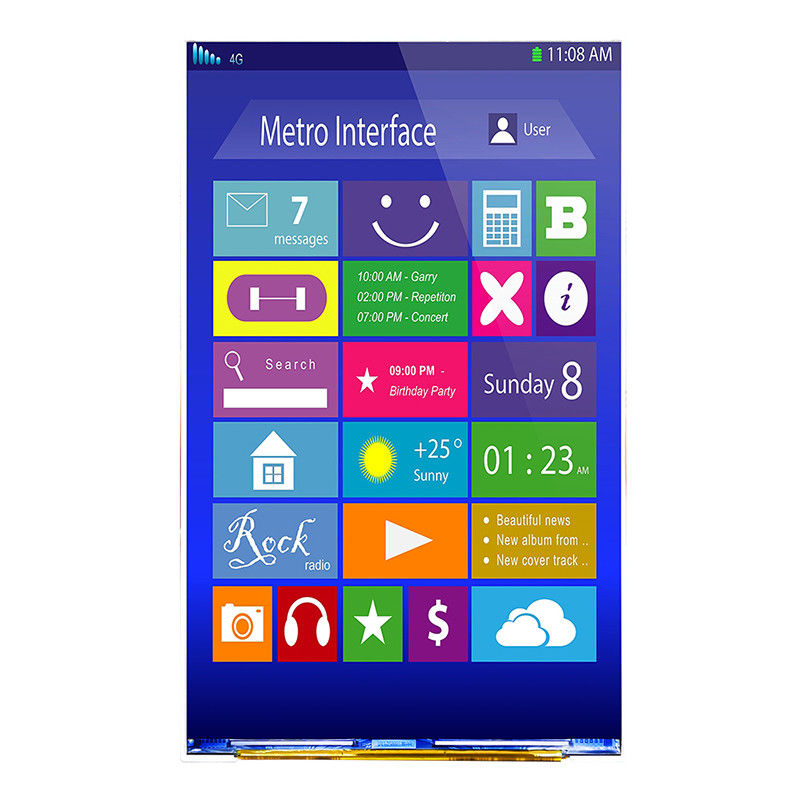

This 7.0 inch TFT LCD display has a 1200x1920 resolution screen with IPS technology, better color reproduction, better image consistency, and better optical characteristics at any angle. For extra protection, this 24-bit true color TFT . This 7.0" display is RoHS compliant with MIPI-4L interface, and does not include a touchscreen. This 7.0" IPS display has been designed with the same mechanical footprint and pinout and includes the same HX8279 driver IC as the TN display, making this a compatible replacement option for the TN models.
General Feature
|
Item |
Standard Value |
Unit |
||
| Display Size | 7.0 | Inch | ||
| Number of Pixels | 1200(H)*3(RGB)* 1920(V) | dots | ||
| Active Area | 94.50(H)* 151.20(V) | mm | ||
| Outline Dimension | 99.75(H) * 161.60(V) * 2.20(D) | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | MIPI 4L | - | ||
| Driver IC | HX8279 | - | ||
| Driver Condition | IOVCC=1.8V,VSN=-5.5V,VSP=5.5V(Typ) | V | ||
| Backlight-1 |
White LED/20 PCS/5 PCS serial 4 ways parallel |
- | ||
| Touch Panel | Whitout TP | |||
| CTP Driver IC | - - - | - | ||
| CTP Driver Condition | - - - | V | ||
| Operation Temperature | -20 ～ 70 |
℃ |
||
| Storage Temperature | -30 ～ 80 |
℃ |
||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | NC |
Not connected |
| 2 ～ 3 | IOVCC |
1.8V power supply |
| 4 | GND | Ground |
| 5 | RESX | Reset pin. |
| 6 | NC |
Not connected |
| 7 | GND | Ground |
| 8 | D0N |
MIPI Negative data signal (-) |
| 9 | D0P |
MIPI Positive data signal (+) |
| 10 | GND | Ground |
| 11 | D1N |
MIPI Negative data signal (-) |
| 12 | D1P |
MIPI Positive data signal (+) |
| 13 | GND | Ground |
| 14 | DCKN |
MIPI Negative clock signal (-) |
| 15 | DCKP |
MIPI Positive clock signal (+) |
| 16 | GND | Ground |
| 17 | D2N |
MIPI Negative data signal (-) |
| 18 | D2P |
MIPI Positive data signal (+) |
| 19 | GND | Ground |
| 20 | D3N |
MIPI Negative data signal (-) |
| 21 | D3P |
MIPI Positive data signal (+) |
| 22 | GND | Ground |
| 23 ～ 24 | NC |
Not connected |
| 25 | GND | Ground |
| 26 | NC |
Not connected |
| 27 | PWMO |
PWM control signal for LED driver |
| 28 ～ 29 | NC |
Not connected |
| 30 | GND | Ground |
| 31 ～ 32 | LEDK |
LED cathode |
| 33 | NC |
Not connected |
| 34 ～ 35 | VSN |
Analog supply negative voltage |
| 36 | NC |
Not connected |
| 37 ～ 38 | VSP |
Analog supply positive voltage |
| 39 ～ 40 | LEDA | LED anode |
