Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A4WVIST5N60
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Module |
Display Size: |
4.3 Inches |
Display Content: |
480x800 Dots |
Interface: |
MCU / RGB / MIPI / MDDI |
Working Temperature: |
-20~70℃ |
Driver Chip Model: |
NT35510 |
Product Type: |
TFT Module |
Display Size: |
4.3 Inches |
Display Content: |
480x800 Dots |
Interface: |
MCU / RGB / MIPI / MDDI |
Working Temperature: |
-20~70℃ |
Driver Chip Model: |
NT35510 |

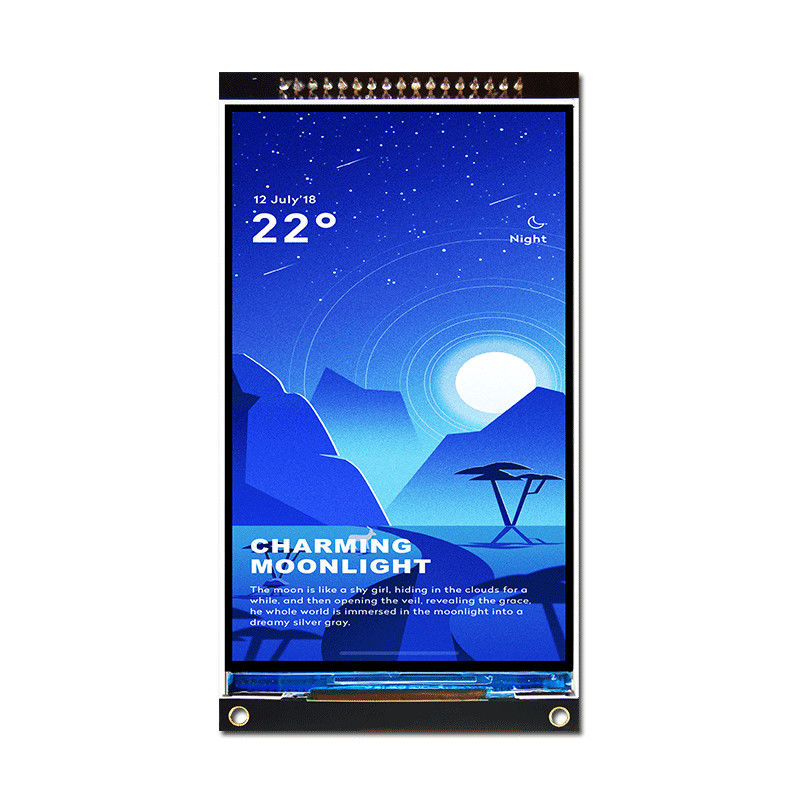

4.3 Inch 480x800 Sunlight Readable TFT Display Module NT35510/TFT_H043A4WVIST5N60
Product parameters
Dimensions (mm) - 60.86x104.50x 2.50
Effective size mm - 56.16x93.60
Product Application - Handheld Instruments
Angle - Full Angle
Backlight type or brightness - 500cd/m2
Connection method PIN number - FPC-60PIN
Supply voltage - 3.3v
General Feature
| Item | Standard Value | Unit |
| Display Size | 4.3” | -- |
| Number of Pixels | 480(H)x3(RGB)*800(V) | -- |
| Active Area | 56.16(H) *93.60(V) | mm |
| LCM Outline Dimension | 60.86(H) ×102.57× 2.70(V) | mm |
| Viewing Direction | Full O’Clock | - |
| LCM Interface | With CPU / RGB / MIPI / MDDI Interface | - |
| LCM Driver IC | NT35510 | - |
| LCM Driver Voltage | IOVCC=1.8V,VCI=3.3V (Typ) | V |
| Backlight | White LED | - |
| Touch Panel | Without Touch Panel | - |
| CTP Driver IC | - - - | - |
| CTP Driver Voltage | - - - | V |
| CTP I/O Digital Voltage | - - - | V |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Pin Description
| Pin NO. | Symbol | Description |
| 1,2 | GND | Ground |
|
3 |
D0N |
♦These pins are DSI-D0+/- differential data signals if MIPI interface is used. ♦These pins are MDDI_DATA0_P/M differential strobe signals if MDDI interface is used. ♦If not used, please fix this pin at GND. |
|
5 |
D0P |
|
| 5,6 | GND | Ground |
|
7 |
DCLKN |
♦These pins are DSI-CLK+/- differential clock signals if MIPI interface is used. ♦These pins are MDDI_STB_P/M differential strobe signals if MDDI interface is used. ♦If not used, please fix this pin at GND. |
|
8 |
DCLKP |
|
| 9 | GND | Ground |
|
10 |
D1N |
♦These pins are DSI-D1+/- differential data signals if MIPI interface is used. ♦These pins are MDDI_DATA1_P/M differential strobe signals if MDDI interface is used. ♦If not used, please fix this pin at GND. |
|
11 |
D1P |
|
| 12 | GND | Ground |
| 13 | VCI | Analog Power |
| 14 | IOVCC | Power supply for interface system |
| 15 | VSD |
♦ Vertical synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND. |
| 16 | HSD |
♦ Horizontal synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND. |
| 17 | PCLK |
♦ Pixel clock signal for RGB interface. ♦ If not used, please fix this pin at GND. |
| 18 | DEN |
♦ Data enable signal for RGB interface. ♦ If not used, please fix this pin at GND. |
|
19-42 |
DB0-DB23 |
♦ Data Bus. ♦ If not used, please fix this pin at GND. |
| 43 | RESET | LCM Reset Pin. |
|
44 |
CSX |
♦ Chip select input pin (“Low” enable) in 80-series MPU I/F and SPI I/F. ♦ This pin is not used for MIPI or MDDI I/F, please fix this pin at GND. |
| 45 | RDX |
♦ Read enable in 8080 MCU parallel IF. Low-active. ♦If not used, please fix this pin at GND. |
|
46 |
WRX |
♦ Write enable in MCU parallel interface ♦ In SPI mode, this pin is used as SCL. ♦ In I2C mode, Serial input clock in I2C I/F ♦ If not used, please fix this pin at GND. |
| 47 | DCX |
♦ Display data/command selection pin in parallel IF. ♦ If not used, please fix this pin at GND. |
|
48 |
SPI_SDI |
♦ In SPI mode,SPI interface input/output pin. ♦ In I2C mode, Serial input/output signal in I2C I/F. ♦ If not used, please fix this pin at GND. |
| 49 | SPI_SDO |
♦ In SPI mode,SPI interface output pin. ♦ If not used, please let this pin open. |
|
50 |
TE |
♦ Tearing effect signal is used to synchronize MCU to frame memory writing. ♦ If not used, please let this pin open. |
| 51-54 | IM0-IM3 | The MCU interface mode select |
|
55 |
PSWAP |
♦ Input pin to select HSSI_D0/D1 data lane sequence and polarity in high speed interface only. ♦ For MIPI interface, both DSWAP and PSWAP function are available. ♦ For MDDI interface, only PSWAP function is available. i.e. DSWAP=1 in below table is invalid. ♦ If not used, please fix this pin at GND. |
|
56 |
DSWAP |
|
|
57 |
LANSEL |
♦ Input pin to select 1 data lane or 2 data lanes in MIPI/MDDI interface. ♦ If not used, please fix this pin at GND. |
| 58 | MTP | No Conect |
| 59 | LED_A | LED Anode |
| 60 | LED_K | LED Cathode |
