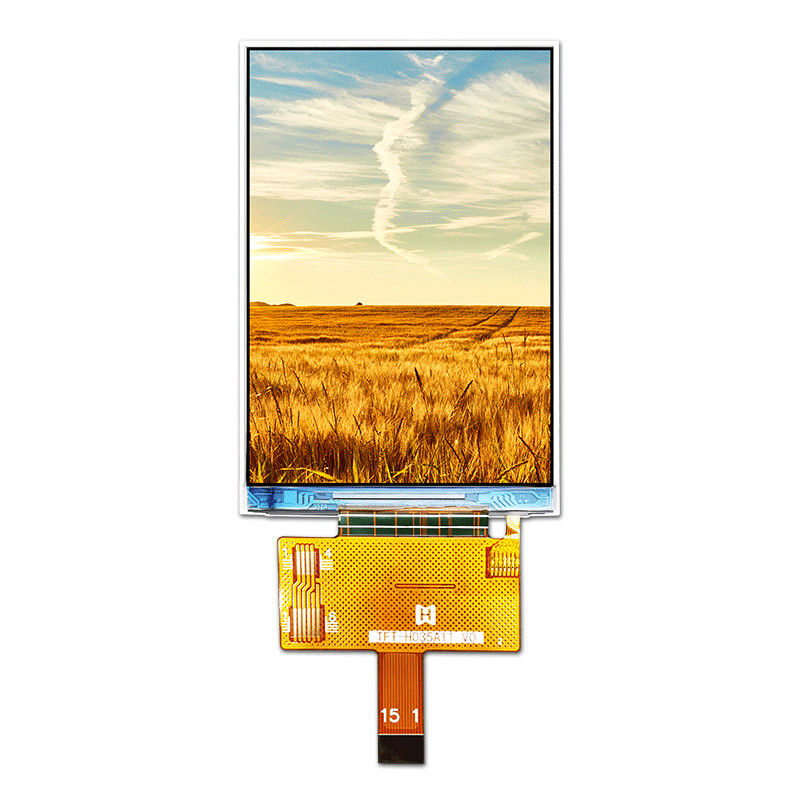

3.5 Inch SPI 320x480 Dots TFT Module ST7796 IC/TFT-H035 A11HVTST5N15
Product parameters
Product Type - TFT Vertical Screen
Display Content - 320x480
Dimensions (mm) - 54.66 x 83.0 x 3.80
Viewshed window size - 3.5 inch
Display Size - 3.5 inches
Effective Dimensions mm - 48.96 x 73.44
Product Application - Outdoor Instrumentation
General Feature
|
Item |
Standard Value |
Unit |
||
|
Display Size |
3.5 |
Inch |
||
|
Number of Pixels |
320(H)*3(RGB)* 480(V) |
dots |
||
|
Active Area |
48.96(H)* 73.44(V) |
mm |
||
|
Outline Dimension |
54.50(H) * 83.00(V) * 2.30(D)(V0-0) |
mm |
||
|
Viewing Direction |
12 O'Clock (U60/D60/L70/R70) |
- | ||
|
Interface |
SPI 3-Line or 4-Line Serial interface |
- | ||
|
Driver IC |
ST7796 | - | ||
|
Driver Condition |
IOVCC=1.8V,VCI=2.8V or 3.3V(Typ) |
V |
||
|
Backlight |
White LED/6 PCS/1 PCS serial 6 ways parallel |
- | ||
|
Touch Panel |
Without TP √ |
With RTP |
With CTP |
- |
|
TFT Operation AT |
-20 ～ +70 |
℃ |
||
|
TFT Storage AT |
-30 ～ +80 |
℃ |
||
TFT Pin Description
|
Pin NO. |
Symbol |
Description |
| 1 | LEDK |
LED cathode |
| 2 | LEDA |
LED anode |
| 3 | GND |
Power supply ground |
| 4 | SPI |
3-wire and 4-wire SPI interface selection |
| 5 | RESX |
Reset signal. Signal is active low |
|
6 |
SPI-SDA |
- Serial interface data input/output pins. - The data is latched on the rising edge of the SCL signal. |
| 7 | SPI-SCL |
Serial Interface Clock |
| 8 | SPI-D/CX |
Serial interface data/command selection pin |
| 9 | SPI-CSX |
Chip selection pin.Low enable. |
| 10 | VCI |
Power supply |
| 11 | CTP-VDD |
CTP Power supply |
| 12 | CTP-SCL |
CTP I2C clock signal |
| 13 | CTP-SDA |
CTP I2C data signals |
| 14 | CTP-INT |
CTP interrupt signal |
| 15 | CTP-RES |
CTP Reset pin |
DESCRIPTION
3.5 inch Thin Film Transistor (TFT-LCD)
HOTLCD Display offers a series of medium size O-Film TFT (Thin Film Transistor) displays featuring with wider viewing angle Technology. Most industrial application of TFT-LCD glasses that are available in the market are TN-LCD type. However, TN technology suffers from phenomenon called gray scale inversion. This means the display have one viewing side in which color of the image change suddenly after exceeding specified view angle. Therefore, the normal TFT models we offer which the viewing angle are limited. HOTLCD offers an O-Film TFT solution to enhance TN glass viewing angle and can overcome gray scale inversion.
