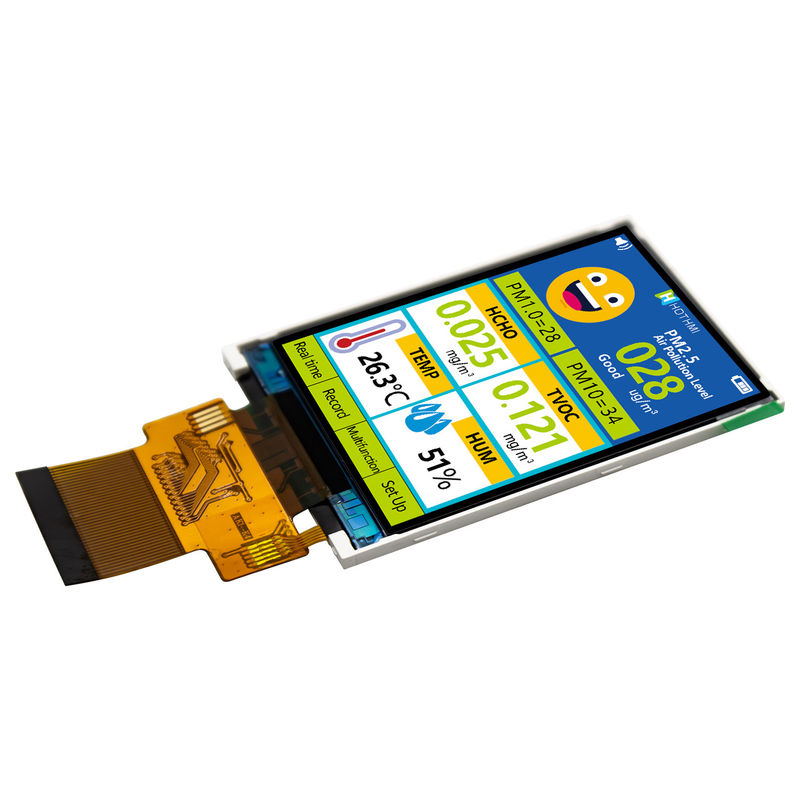

2.4 Inch Sunlight Readable TFT Display/240x320 Pixels/TFT-H024A1QVIST8N40
Product parameters
Display Size - 2.4"
Perspective - Full Perspective
Backlight type or brightness - 800cd/m2
Connection method PIN number - 40PIN
Interface - MCU
Working temperature - -30~80℃
Supply Voltage - 3.3V
Driver chip model - ST7789V
General Feature:
|
Item |
Standard Value |
Unit |
| Display Size | 2.4 | Inch |
| Number of Pixels | 240(Hx3(RGB)x320(V) | dots |
| Active Area | 36.72(H)x48.96(V) | mm |
| Dimensions |
42.52(H) x 59.86(V) x 2.20(D) <TFT BL1> |
mm |
| Viewing Direction | FULL O'clock | - |
| TFT Interface |
MCU 8/16 bit compatible with SPI (Default MCU 8/16 bit) |
- |
| TFT Driver IC | ST7789V | - |
|
TFT Driver Condition |
VCI=2.8V,IOVCC=1.8V(Typ) | V |
| Backlight-1 | White LED/4 PCS/4 LEDs parallel | - |
| Backlight-2 |
White LED/6 PCS/2 LEDs serial 3 ways parallel |
|
| Touch Panel | --- | - |
| CTP Driver IC | FT6236U | - |
| CTP Driver Condition | VDD=3.3V | V |
| Operation Temperature | -30 ～ 80 |
℃ |
| Storage Temperature | -40 ～ 80 |
℃ |
Product Description
The TFT-H024A1QVIST8N40 is a 2.4-inch wide temperature IPS TFT-LCD monitor with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports MCU interface. TFT-H024A1QVIST8N40 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 800 nits (typical) value), glare panel, 16:9 aspect ratio. The supply voltage (VCC) of the TFT-H024A1QVIST8N40 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.
