Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM-H017A3-SPI-V0
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Type: |
TFT LCD Display Modules |
Show Contents: |
128x160 |
Outline Size(mm): |
37.4x55.7x2.3 |
Display Size: |
1.7 Inch |
Effective Size(mm): |
28.03x35.04 |
Product Application: |
Instrumentation |
Visual Angle: |
Full View |
Backlight Type Or Brightness: |
850cd/m² |
Interface Mode: |
SPI |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7735S |
Product Type: |
TFT LCD Display Modules |
Show Contents: |
128x160 |
Outline Size(mm): |
37.4x55.7x2.3 |
Display Size: |
1.7 Inch |
Effective Size(mm): |
28.03x35.04 |
Product Application: |
Instrumentation |
Visual Angle: |
Full View |
Backlight Type Or Brightness: |
850cd/m² |
Interface Mode: |
SPI |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7735S |

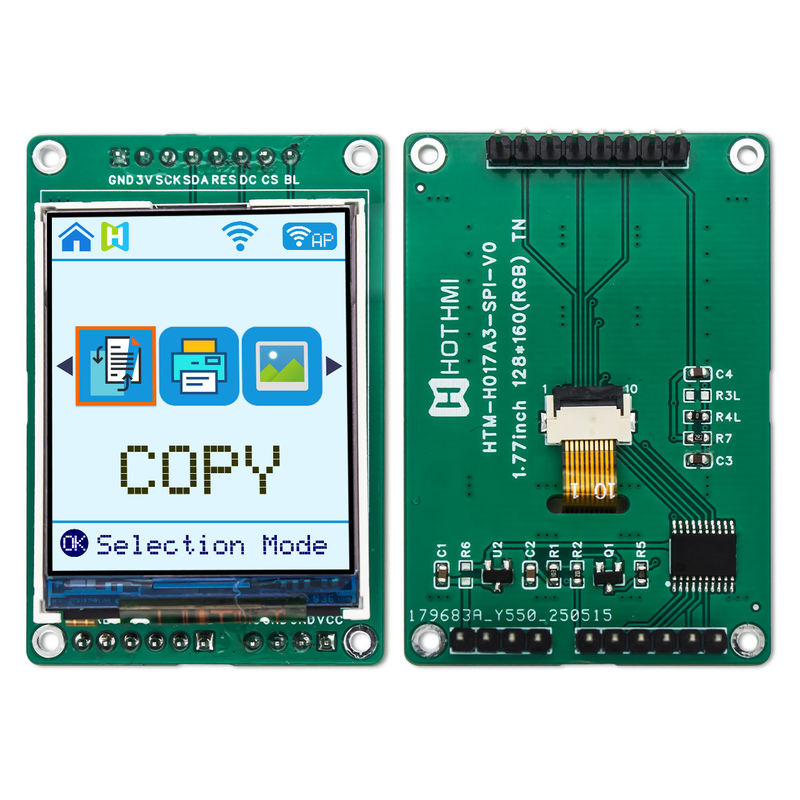

Compact Design with Precision Dimensions
Featuring a 1.77-inch TFT screen, this module offers a compact footprint (PCB: 55.70±0.2mm, TFT: 43.70±0.2mm) with precise hole positioning (32.40±0.2mm and 50.70±0.2mm) for seamless integration. The 128×3RGB×160 resolution ensures vivid visuals, while the 28.03mm (TFT A/A) and 35.04mm (TFT A/A) active areas balance clarity and space efficiency.
Versatile Connectivity & Robust Construction
Equipped with an SPI 3L/4L interface, the module supports flexible communication protocols. Its P2.54x7 (17.78mm) and P2.54x10 (25.40mm) pin headers enable easy wiring, while the 2.30mm pin header plastic height and φ2.00/φ3.50mm holes ensure secure mounting. The PCB thickness of 1.60mm adds durability for industrial applications.
Extreme Environment Adaptability
Operating Temp: -20℃ to +70℃ (TFT)
Storage Temp: -30℃ to +80℃
Designed for harsh conditions, this module withstands wide temperature ranges, making it ideal for outdoor devices, industrial controls, and consumer electronics.
High-Performance Visual Experience
Powered by the ST7735S driver IC, it delivers 850 cd/m² (Typ.) brightness with constant current testing for consistent illumination. The 12 O'Clock viewing direction (U45/D20/R45/L45) ensures optimal visibility from multiple angles, while the built-in backlight driver circuit simplifies system design.
Reliable Electrical Specifications
Operating Voltage: VCI = 2.5~3.3V (low-power compatibility)
Scale: 1:1 (true-to-size design representation)
Version: V0-0 (initial release with verified performance)
Applications
Perfect for:
Portable medical devices
Smart home control panels
Automotive instrument clusters
IoT sensor displays
Consumer electronics (wearables, handheld gadgets)
Model: HTM-H017A3-SPI-V0
Engineered for performance, durability, and ease of integration—your go-to display solution for compact, high-reliability applications.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM-H017A3-SPI-V0 | |
| Diagonal size | 1.7” | Inch |
| Resolution | 128x160 | Dot |
| Dimensions | 37.4x55.7x2.3 | mm |
| Active area (AA) | 28.03x35.04 | mm |
| LCD type | 1.7” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7735S | |
| Brightness | 850cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
