Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTM-TFT024A16-SPI
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Type: |
TFT LCD |
Show Contents: |
240X320 |
Outline Size(mm): |
73.35×46.07×4.95 |
Display Size: |
2.4 Inch |
Effective Size(mm): |
49.96X37.72 |
Product Application: |
Handheld Instruments/Industrial Control/Medical/Home Appliances |
Visual Angle: |
Full View |
Backlight Type Or Brightness: |
700cd/m2 |
Connection PIN Number: |
FPC-8PIN |
Interface Mode: |
MCU SPI-4L |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7789V |
Product Type: |
TFT LCD |
Show Contents: |
240X320 |
Outline Size(mm): |
73.35×46.07×4.95 |
Display Size: |
2.4 Inch |
Effective Size(mm): |
49.96X37.72 |
Product Application: |
Handheld Instruments/Industrial Control/Medical/Home Appliances |
Visual Angle: |
Full View |
Backlight Type Or Brightness: |
700cd/m2 |
Connection PIN Number: |
FPC-8PIN |
Interface Mode: |
MCU SPI-4L |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7789V |

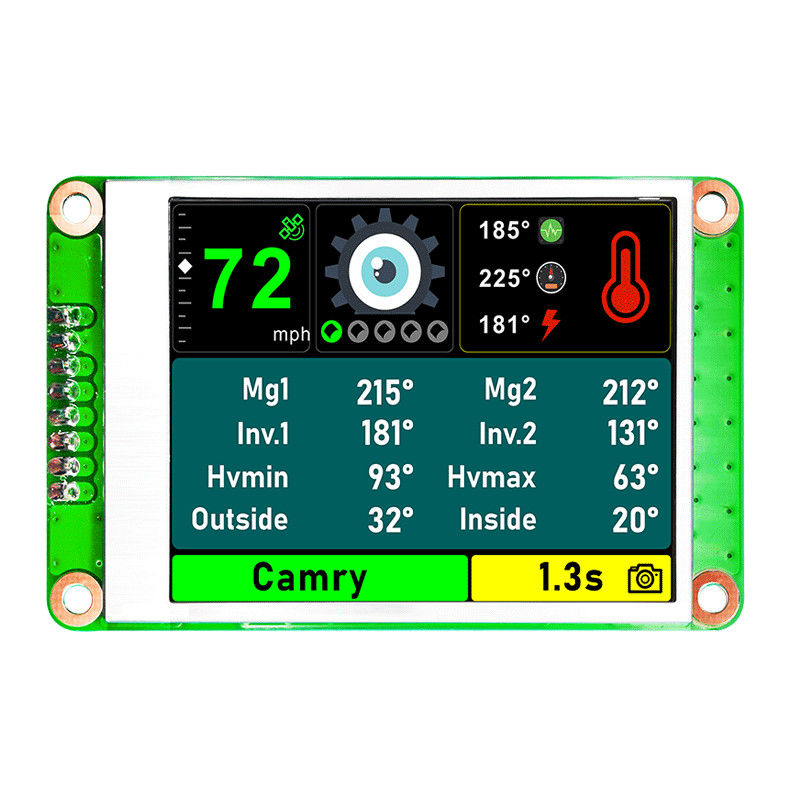

2.4 inch TFT Module 240*320 Resoliution Full viewing angle | HTM-TFT024A16-SPI
Product type: TFT vertical screen
Display content: 240*320
Dimensions (mm): 73.35(H) ×46.07(V)× 4.95(D)
Window size (mm): 2.4"
Display size (mm): 2.4"
Effective size (mm): 49.96(H) *37.72(V)
Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances
Viewing angle:FULL O'CLOCK
Backlight type or brightness: 700cd/m2
Number of connection PINs: FPC-8PIN
Interface: MCU SPI-4L
Working temperature: -30~80℃
Power supply voltage: 3.3V
Driver chip model: ST7789V
HTM-TFT024A16-SPI is a 2.4-inch TFT color LCD panel display screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU SPI-4L interface , 8PIN plug-in FPC can be connected to the motherboard (optional connector), single power supply DC 3.3V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
