Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H055A1HDIIL3N30
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Display |
Display Content: |
720x1280 Dots |
Dimensions (mm): |
71.04x129.56 |
Viewport Window Size: |
5.5 Inch |
Effective Size (mm): |
67.932x120.768 |
Backlight Brightness: |
350 Cd/m2 |
Product Type: |
TFT Display |
Display Content: |
720x1280 Dots |
Dimensions (mm): |
71.04x129.56 |
Viewport Window Size: |
5.5 Inch |
Effective Size (mm): |
67.932x120.768 |
Backlight Brightness: |
350 Cd/m2 |

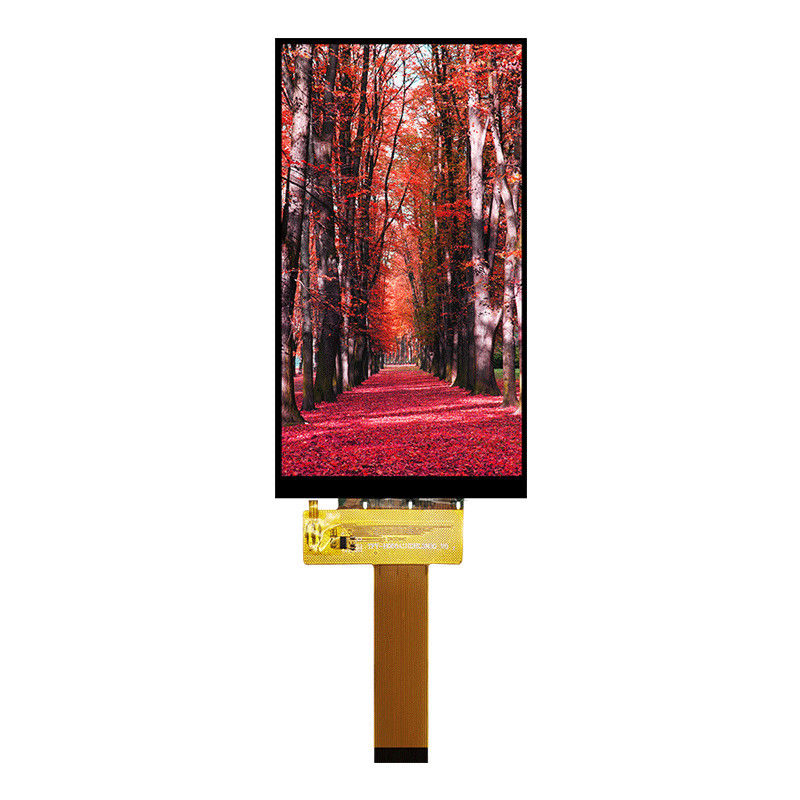

5.5 Inch 720x1280 Dots High Brightness TFT Display/IC ILI9881/TFT-H055A1HDIIL3N30
Product parameters
Display Size - 5.5 inch
Product Application - Handheld Devices
Perspective - Full Perspective
Connection method PIN number - 30Pin
Interface - MIPI 4L
Special instructions - high brightness, visible in sunlight
Working temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver IC Model - ILI9881
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H055A1HDIIL3N30 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 720x1280 | Dot |
| Dimensions | 71.04x129.56x1.62 | mm |
| Active area (AA) | 67.932x120.768 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 1:2 | |
| Backlight type | LED white | |
| TFT driver IC | ILI9881 | |
| Brightness | 350 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
Product Description
TFT-H055A1HDIIL3N30 is a 5.5-inch 720 x1280 full-color HD high-definition TFT LCD module. This TFT-LCD supports MIPI DSI interface and adopts wide viewing angle IPS (In-plane Switching) panel technology. The viewing angle range is left: 80 / right: 80 / top: 80 / bottom: 80 degrees. Vivid, high-quality picture with saturated naturalness. This model has an operating temperature of -20°C to +70°C and a storage temperature of –30°C to +80°C.
The size of this TFT module is 67.932x120.768mm, the size of the Active area (AA area) is 71.04x129.56 mm, the module has a built-in driver IC ILI9881 (driver IC), and the working power supply voltage: 3.3V. The TFT-H055A1HDIIL3N30 module is in the straight screen mode, if you need to use the horizontal screen mode, please contact us, and we will provide relevant technical support services.
