Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H040A1PVIST3C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
Square TFT |
Display Content: |
480x480 Dots |
Dimensions (mm): |
83.90(H) * 83.90(V) * 3.21(D) |
Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7701S |
Special Instructions: |
With Capacitive Touch Function |
Product Type: |
Square TFT |
Display Content: |
480x480 Dots |
Dimensions (mm): |
83.90(H) * 83.90(V) * 3.21(D) |
Supply Voltage: |
3.3V |
Driver Chip Model: |
ST7701S |
Special Instructions: |
With Capacitive Touch Function |

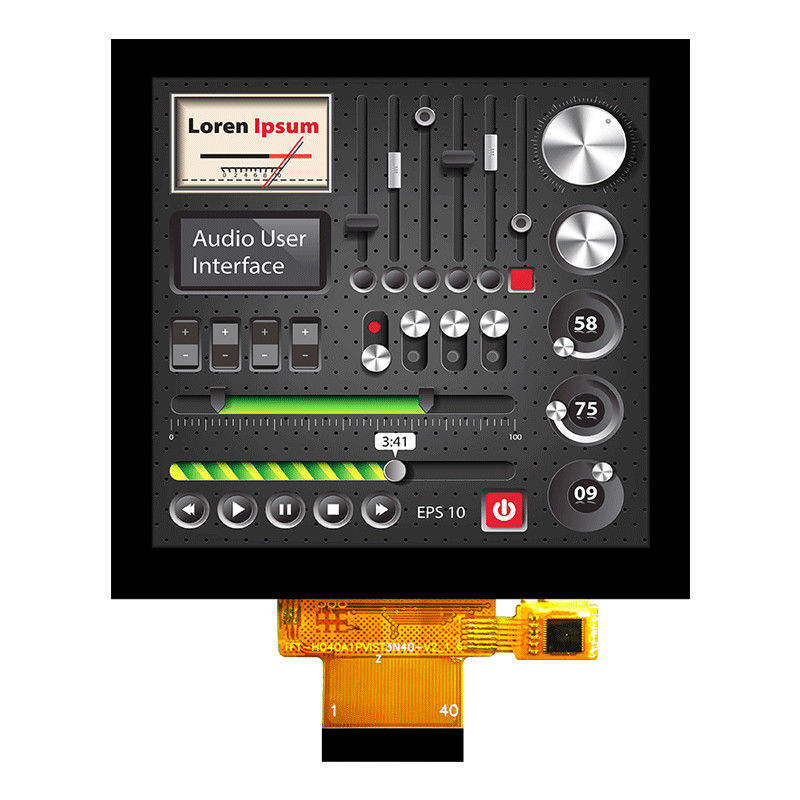

4 Inch 480x480 TFT LCD Module SPI FT6336U Capacitive Touch Screen/TFT-H040A1PVIST3C40
Product parameters
Field of view window size (mm) - 4 inch
Display Size(mm) - 4 inch
Effective Dimensions mm - 71.86(H) x 70.18(V)
Product application - 86 boxes, smart panel
Angle - Full Angle
Backlight brightness - 350cd/m2
Connection method PIN number - 40PIN
Interface - 18 bit RGB+SPI
Working temperature - -20~70℃
General Feature
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H040A1PVIST3C40 | |
| Diagonal size | 4.0” | Inch |
| Resolution | 480x480 | Dot |
| Dimensions | 83.9X83.9X3.21 | mm |
| Active area (AA) | 71.86X70.18 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 1:1 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 350 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
DESCRIPTION
HOTLCD H040A1 is 480x480 dots TFT LCD module display with 4.0" TFT capacitive touch screen and it is easily controlled by SPI WITH RGB. This 4.0" TFT LCD with touch screen can be used in embedded systems, industrial device, 86 boxes, smart home panels equipment which require display in high quality and colorful image. It supports RGB WITH SPI interface.
