Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H101A9WSIFTKN40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Landscape |
Display Content: |
1024x600 Dots |
Field Of View Window Size: |
10.1 Inch |
Product Application: |
Industrial Display/Household Appliances/Medical Equipment |
Backlight Type Or Brightness: |
1200cd/m2 |
Driver Chip Model: |
EK79001+EK73215 |
Product Type: |
TFT Landscape |
Display Content: |
1024x600 Dots |
Field Of View Window Size: |
10.1 Inch |
Product Application: |
Industrial Display/Household Appliances/Medical Equipment |
Backlight Type Or Brightness: |
1200cd/m2 |
Driver Chip Model: |
EK79001+EK73215 |

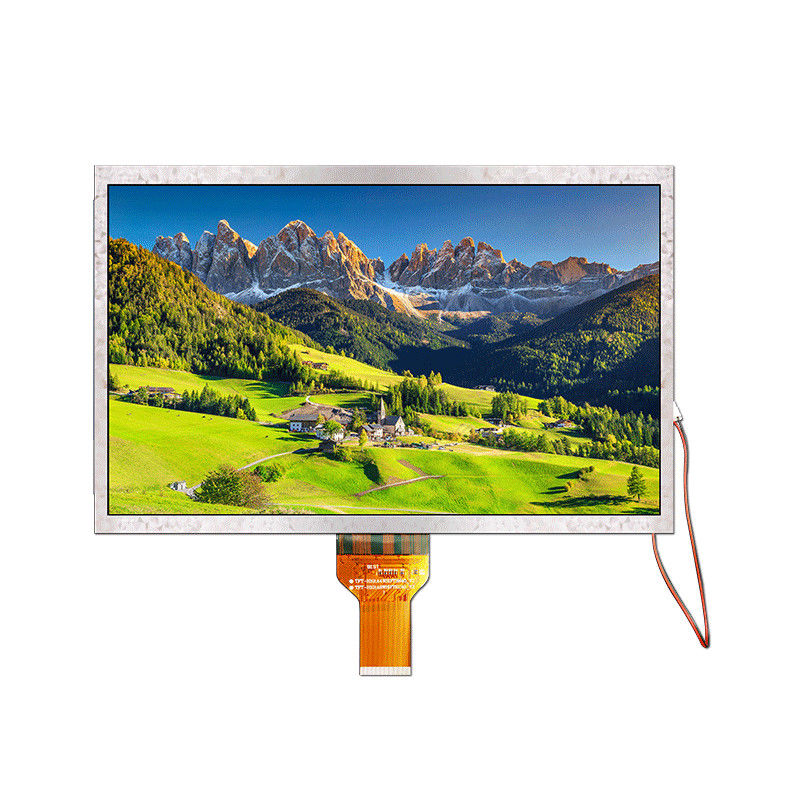

10.1 Inch 1024x600 High Brightness LVDS IPS TFT Display/EK79001+EK73215/H101A9WSIFTKN40
Product parameters
Dimensions (mm) - 235.00x143.00x 6.95
Display size (mm) - 10.1 inch
Effective size mm - 222.72x125.28
Perspective - Full Perspective
Connection method PIN number - 40PIN
Interface method - LVDS
Working temperature - -20~70℃
Supply Voltage - 3.3V
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H101A9WSIFTKN40 | |
| Diagonal size | 10.1” | Inch |
| Resolution | 1024x600 | Dot |
| Dimensions | 235.00X143X6.9 | mm |
| Active area (AA) | 222.72X125.28 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | ||
| Backlight type | LED white | |
| TFT driver IC | EK79001+EK73215(TFT) | |
| Brightness | 1000 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
