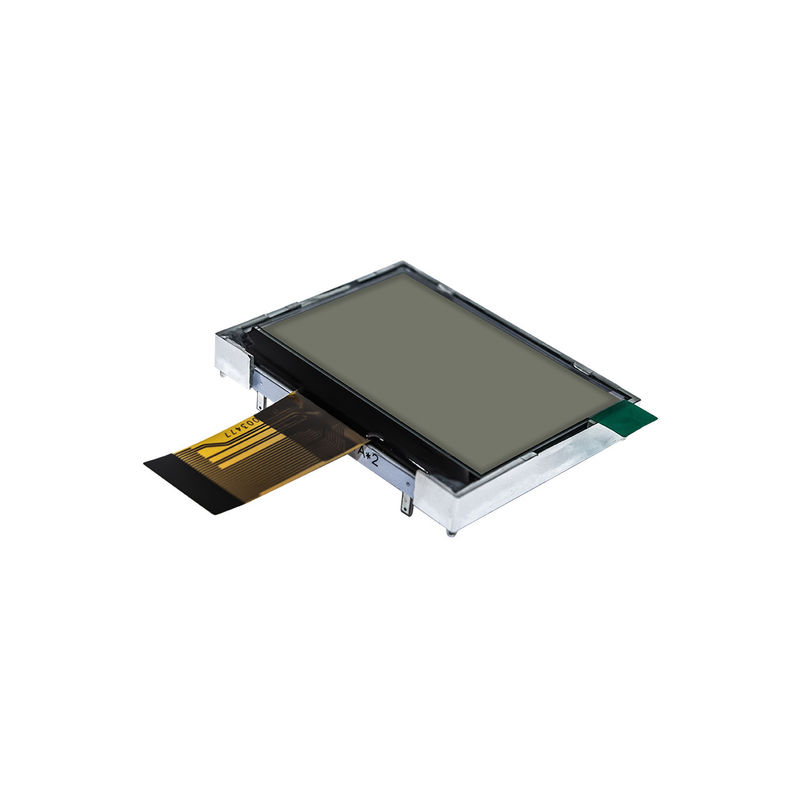

2.0 inch 128x64 yellow-green COG display | STN+ LCD | Industrial control display
▶ Model: HTG12864-132-31W-30C05-V01
▶ Type: COG graphic dot matrix
▶ Display pixels: 128x64
▶ Dimensions (mm): 50.2x39.2x6
▶ Display inches: 2.0"
▶ VA size (mm): 44.0x29.0
▶ AA size (mm): 40.93x24.93
▶ Dot spacing (mm): 0.39x0.32
▶ Application: inverter
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-30PIN
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567A
The HTG12864-132-31W-30C05-V01 display panel launched by HotDisplay has become an ideal choice for the industrial and consumer electronics fields with its sophisticated design and reliable performance. The product adopts high-quality LED circuit design to ensure clear and stable display effects and is suitable for a variety of application scenarios.
Product highlights:
Precision structure: Double-sided adhesive is used to fix the panel to ensure that the panel is firmly installed and durable. This design not only improves the stability of the panel, but also enhances its impact and vibration resistance in harsh environments.
Efficient circuit design: Optimized LED circuit layout provides stable display performance and reduces energy consumption. Through sophisticated circuit design, the panel can effectively reduce power consumption and extend the service life of the equipment while ensuring high brightness and clarity.
Versatile applications: Suitable for industrial control, medical equipment, consumer electronics and other fields. Whether it is a complex operating interface in an industrial environment or a high-precision display requirement in medical equipment, HTG12864-132-31W-30C05-V01 can handle it.
Easy to integrate: Provide detailed wiring diagrams and installation instructions to simplify the integration process. Users can quickly complete installation and debugging according to the provided documents, reducing development cycles and costs.
Application scenarios:
Industrial control: In scenarios such as automated production lines and mechanical equipment control panels, HTG12864-132-31W-30C05-V01 can provide clear and stable display effects to ensure that operators can accurately obtain information.
Medical equipment: In fields such as medical instruments and monitoring equipment that require extremely high display accuracy, the panel can provide high-resolution display effects to help medical staff make accurate judgments.
Consumer electronics: In consumer electronics products such as smart homes and portable devices, HTG12864-132-31W-30C05-V01 brings users a high-quality visual experience with its low power consumption and high definition.
|
Customized LCD size: Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires sophisticated manufacturing technology and equipment. Support customization within 396*345mm. |
|
Customized dot matrix and display icon content: Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs. |
|
Customized backlight color and structure: There are multiple combinations of module backlight to choose from, no backlight or with yellow-green/blue/white/amber/red/RGB backlight, up to 48 effects, you can click on the customization page for reference. |
|
Customized interface: Provides a variety of interface options, SPII8080I2C, etc. |
|
Driver board customization: Supports adjustment of driver board size, component sorting, interface type, etc. |
| parameter | Specification content | unit |
| Name | HTG12864-132-31W-30C05-V01 | |
| Graphic display | 128 × 64 | dots |
| Dimensions | 50.2x39.2x6(MAX) | mm |
| VA size | 44.0x29.0 | mm |
| AA size | 40.93x24.93 | mm |
| Pixel pitch | 0.39x0.32 | mm |
| Driver chip | ST7567A | |
| Applied voltage | 3.3V | V |
| Backlight illumination | white | |
| Display mode | FSTN(+) | |
| Drive mode | 1/64 duty cycle | |
| Product type | Graphic COG | |
| Polarizer type | Transflective |
