Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM050A1-USART-ST V1.0
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
800 X 480 Pixels |
Outline L X W X H: |
121.7x97.0x20.7mm |
Active Area L X W:: |
108.8x64.8mm |
Luminance: |
450 Cd/m2 |
Interface MCU SPI 4L: |
STM32F767、GT911(CTP) |
Operating Temperature:: |
-20~80℃ |
Display Format:: |
800 X 480 Pixels |
Outline L X W X H: |
121.7x97.0x20.7mm |
Active Area L X W:: |
108.8x64.8mm |
Luminance: |
450 Cd/m2 |
Interface MCU SPI 4L: |
STM32F767、GT911(CTP) |
Operating Temperature:: |
-20~80℃ |

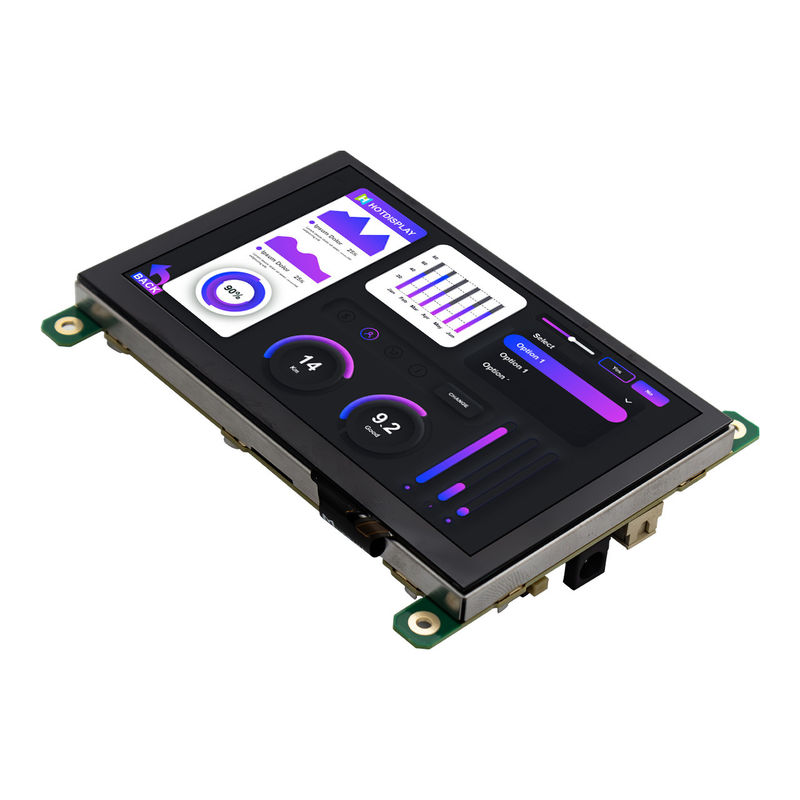

5.0" Smart TFT Module | 800x480 STM32F767 Capacitive touch TFT display
HTM050A1-USART-ST V1.0 | 5.0" IPS LCD Display | 800x480 Pixels | LCD Controller Board | Luminance 450cd/m2 | Interface STM32F767,GT911(CTP) | TFT MODULE | -20°C ~ 80°C | Smart serial Capacitive Touch screen
HTM050A1-USART-ST V1.0 is a 5-inch smart serial screen with a UART (Universal Asynchronous Receiver-Transmitter) interface and a capacitive touch panel. It features a high-quality IPS LCD display with a resolution of 800x480 pixels, providing clear and vibrant visuals.
The LCD controller board integrated into the module ensures smooth and efficient communication between the display and the controlling device. This allows for easy integration into various electronic systems, such as embedded systems, IoT devices, industrial control panels, and more.
With a luminance of 450cd/m2, this display offers excellent brightness, ensuring good visibility even in bright ambient light conditions. The high brightness is especially useful in outdoor or well-lit environments where readability is crucial.
The module supports a wide temperature range from -20°C to 80°C, making it suitable for operation in both extreme cold and hot environments. This temperature resilience enables its use in applications that require reliable performance across different climates and industrial settings.
The capacitive touch screen technology adds an intuitive and user-friendly interface to the display. It allows users to interact with the screen using touch gestures, offering a more engaging and responsive user experience.
Overall, the HTM050A1-USART-ST V1.0 is a versatile TFT LCD module with a UART interface, offering a combination of high-quality visuals, robust communication capabilities, wide temperature tolerance, and capacitive touch functionality. It is well-suited for a range of applications, including industrial automation, medical devices, consumer electronics, and more.
General information
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM050A1-USART-ST V1.0 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 800x480 | Dot |
| Dimensions | 121.7x97.0x20.7 | mm |
| Active area (AA) | 108.8x64.8 | mm |
| LCD type | 5.0" Smart TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | STM32F767,GT911(CTP) | |
| Brightness | 450cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
All Products
|
Reliability Testing |
Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
|
Glass Cleanliness |
Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
|
Bezel Appearance |
Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
|
PCB Appearance |
PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
|
Soldering |
Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
|
ESD Protection & Safety |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Search keyword: tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display,5 inch tft display, tft display 5, tft display 5"
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
