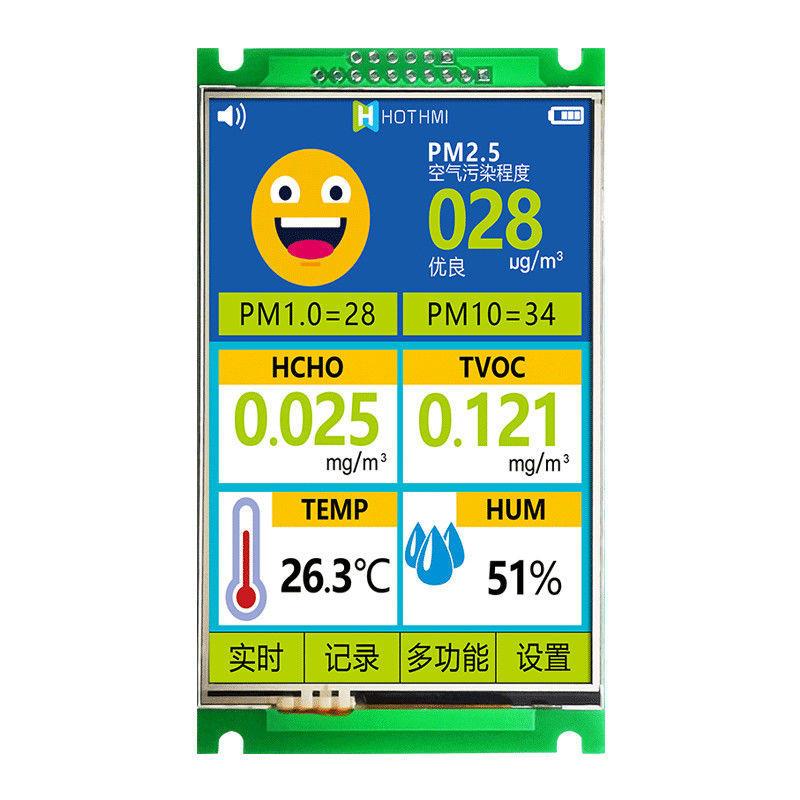

3.5 Inch 320X480 LCD Display UART RS232 Resistive Touch 200cd/m2

Name: 3.5 Inch 320X480 LCD Display UART RS232 Resistive Touch 200cd/m2
Brand: Hotdisplay Technology Co.Ltd
SKU: EzUILet035
Availability: InStock

Product Details

Place of Origin: Dongguan, China

Brand Name: HOTHMI

Model Number: EzUILet035

Payment & Shipping Terms

Minimum Order Quantity: 50

Delivery Time: 25 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 99999

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                3.5 Inch LCD Display UART, Resistive LCD Display UART, RS232UART Resistive Touch Screen


Product Type:	TFT LCM	Show Contents:	320*480
Outline Size(mm):	57.0x98.0x8.0	Size Of View Window(mm):	3.5 Inch Tft
Effective Size(mm):	48.96x73.44	Visual Angle:	6H
Backlight Type Or Brightness:	200cd/m2	Connection PIN Number:	USB+RS232
Interface Mode:	RS232

Product Type:	TFT LCM
Show Contents:	320*480
Outline Size(mm):	57.0x98.0x8.0
Size Of View Window(mm):	3.5 Inch Tft
Effective Size(mm):	48.96x73.44
Visual Angle:	6H
Backlight Type Or Brightness:	200cd/m2
Connection PIN Number:	USB+RS232
Interface Mode:	RS232

Product Description

3.5 inch TFT 320X480 Intelligent serial screen/resistive touch/configuration screen EzUILet035

EzUILet 035 is one of the EzUI series serial port intelligent display module, with

a 3.5-inch (diagonal) color TFT, display, 320480 dot matrix, 16-bit color depth; 16M

bytes inside the module with resource memory. The module needs 5V DC power supply, the

external interface is serial UART (TTL level), interface or SPI interface, simple

interface and easy interface operation with various MCU.

The biggest features of EzUILet series modules are easy to use, rich functions, and

users can be simple and complex. Users can use the interface development tool software

(EzUITool) for human-computer interface design, editing, control configuration, response

setting, etc., the tool software generated resources files download to EzUILet series

modules, can achieve the required human-computer interface design, without the user

microcontroller or other controller programming control. In order to meet users with

special requirements, the EzUILet series module also retains most display control

instructions (similar to the MzTH series module), so that users can be able to control

the module display more freely.

EzUILet series and EzUI series: EzUILet series modules are derived from EzUI series

modules and also belong to EzUI series modules; relative to EzUI series modules, EzUILet

series simplifies some controls, and changes the module USB device interface to virtual serial

port, resource files are written differently from the original EzUI series; EzUILet series

modules also reduce the capacity of resource memory more reasonable and more reliable. The

naming of the GUI controls in the EzUILet series modules still uses the EzUI series module

naming.

project	specifications	unit	Note that
Displays the number of dot arrays	320×RG B ×480	Do ts	Screen display
LCD size	.53 (Diagonal line)	inch	3.5
Touch the panel	A 3.5-inch electric resistance screen		apolegamy
outline dimension	57×98×8.0	m m	Excluding module pins
Dynamic display area	48.96×73.44	m m
Like element composition	a -Si TFT
LCD pattern	65K TFT		The 16-bit color depth
be in a poor light	white LED
Module power supply	5V
