Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM16064A-31W-N3P-V01
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
160x64 |
Dimensions (mm): |
79.0x42.3x5.2 |
Field Of View Window Size: |
6H |
Backlight: |
White |
Driver Chip: |
IST3020 |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
Display Content: |
160x64 |
Dimensions (mm): |
79.0x42.3x5.2 |
Field Of View Window Size: |
6H |
Backlight: |
White |
Driver Chip: |
IST3020 |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
If you need to purchase please contact https://www.display-lcd.com/

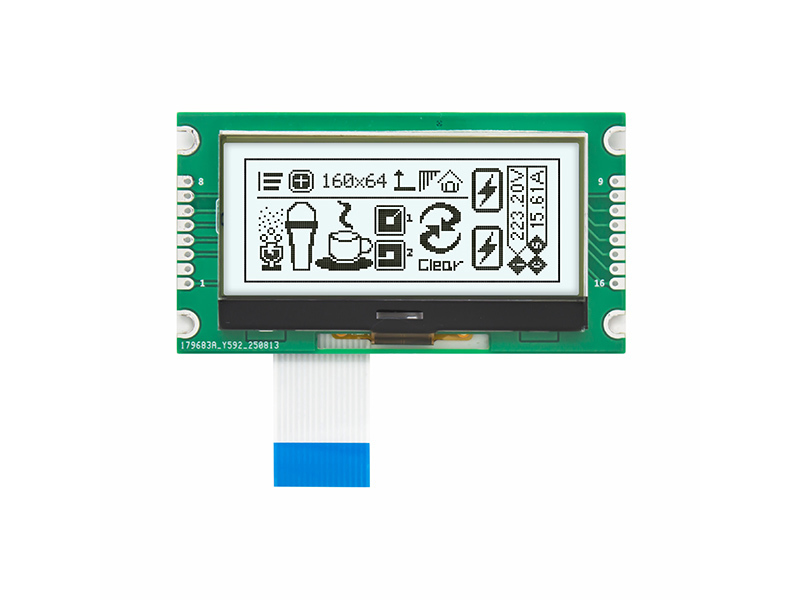

This 160x64 pixel graphic LCD module utilizes FSTN grayscale technology, displaying dark pixels on gray, whether powered on or off. This transflective display is engineered to provide an optimal 6:00 viewing angle in all environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back toward the viewer, making the screen easy to read. In darker conditions, a built-in yellow-green side backlight provides bright, high-contrast graphics. This advanced display technology ensures that this monochrome display is easy to read in all lighting conditions.
This graphic LCD features a built-in ST3020 controller and communicates via a 6800/8080 parallel interface, ensuring compatibility with a variety of interfaces and development boards, including Arduino. The graphic module operates from a 3.3V power supply and has an operating temperature range of -20 to 70 degrees Celsius. All of our displays are RoHS compliant and adhere to strict environmental and safety standards.
| ITEM | parameter | Unit |
| Name | HTM16064A-31W-N3P-V01 | |
| Number of dots | 160x64 | dots |
| Module size | 79.0x42.3x5.2 | mm |
| VA size | 60.0x25.1 | mm |
| AA size | 55.97x22.37 | mm |
| Pixel pitch | 0.28x0.28 | mm |
| IC | ST3020 | |
| Power supply voltage | 3.3V | V |
| Backlight | White | |
| Display mode | FSTN+ | |
| Drive mode (Duty) | 1/64 duty cycle | |
| Type | Graphic LCD | |
| Features | Transflective |
