Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTG24064-05
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
Graphic COG |
Show Contents: |
240x64 Dot |
Outline Size(mm): |
80x34x2.1mm |
Display Size(mm): |
71.26x19.5mm |
Point Spacing(mm): |
0.285x0.277mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
24PIN |
Working Temperature: |
-20~70 ℃ |
Power Supply Voltage: |
3.3 V |
Driver Chip Model: |
ST75256 |
Product Type: |
Graphic COG |
Show Contents: |
240x64 Dot |
Outline Size(mm): |
80x34x2.1mm |
Display Size(mm): |
71.26x19.5mm |
Point Spacing(mm): |
0.285x0.277mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
24PIN |
Working Temperature: |
-20~70 ℃ |
Power Supply Voltage: |
3.3 V |
Driver Chip Model: |
ST75256 |

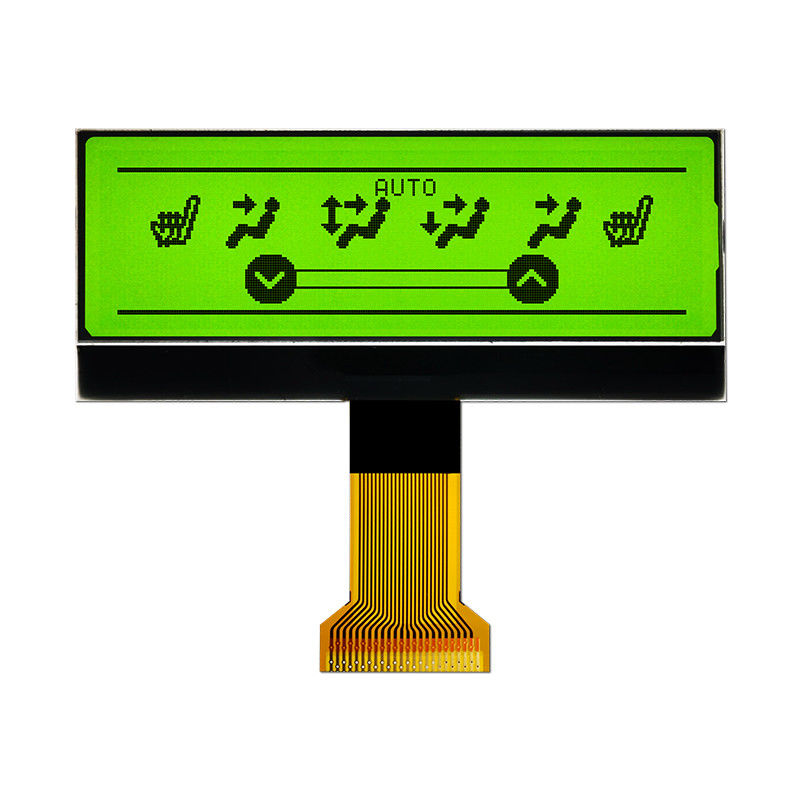

240x64 COG LCD Graphics Display Module ST75256 With Yellow-Green Fully Transparent
HTG24064-05 is a high-quality monochrome graphic COG (Chip-On-Glass) LCD display module featuring a resolution of 240x64 dots. This module offers exceptional clarity and visibility, making it ideal for various applications that require clear graphical representation.
The display is built using a transflective LCD technology, which ensures excellent visibility even in diverse lighting conditions. Whether in bright sunlight or dimly lit environments, the HTG24064-05 guarantees consistent and reliable performance.
One of the standout features of this display module is its yellow-green fully transparent color. This color combination offers a unique aesthetic appeal while maintaining a high level of transparency. The yellow-green hue adds a distinctive touch to your product design, making it visually appealing and eye-catching.
With its compact and efficient COG design, the HTG24064-05 provides a sleek and space-saving solution for your graphical display needs. The chip-on-glass construction allows for a thin and lightweight module that seamlessly integrates into your product design.
The HTG24064-05 is highly versatile and can be utilized in a wide range of applications, including industrial equipment, medical devices, consumer electronics, instrumentation, and more. Its exceptional resolution, combined with the crisp and sharp graphical representation, ensures that your content is displayed with utmost clarity and precision.
Experience the reliability, visual excellence, and aesthetic appeal of the HTG24064-05. It is the perfect choice for your next product that requires a monochrome graphic display with a yellow-green fully transparent color, enabling you to deliver a superior user experience.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 240x64 | dots |
| Module dimension | 80x34x2.1 | mm |
| View display area | 71.26x19.5 | mm |
| Dot size | 0.285x0.277 | mm |
| Dot pitch | 0.305x0.297 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | Yellow-Green Fully Transparent | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | ST7565R | |
| Backlight | WHITE | |
| Product application | instrumentation | |
