Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM-H070A2-RGB-B06-CTP
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
1024x600 Pixels |
Outline L X W X H:: |
186.9x108x8.3mm |
Active Area L X W:: |
156.1x88.5mm |
Luminance: |
550cd/m2 |
Interface MCU SPI 4L: |
RGB |
Operating Temperature:: |
-20°C~70°C |
Display Format:: |
1024x600 Pixels |
Outline L X W X H:: |
186.9x108x8.3mm |
Active Area L X W:: |
156.1x88.5mm |
Luminance: |
550cd/m2 |
Interface MCU SPI 4L: |
RGB |
Operating Temperature:: |
-20°C~70°C |

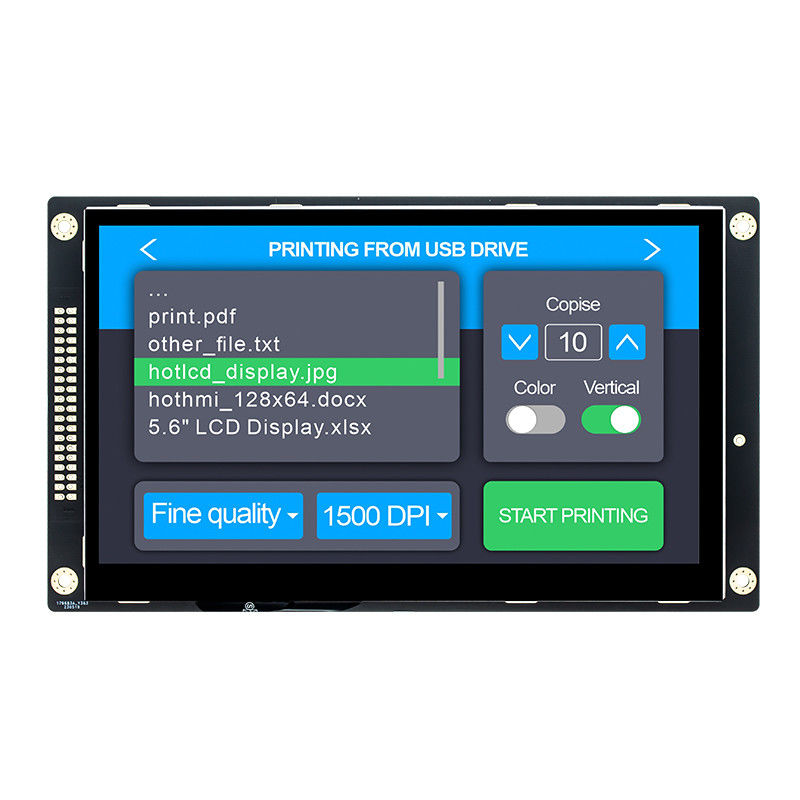

7 inch Capacitive Touch Display IPS 1024x600 RGB Interface for Raspberry Pi
HTM-H070A2-RGB-B06-CTP | 7.0" IPS LCD Display | 1024x600 Pixels | LCD Controller Board | Luminance 550cd/m2 | Interface RGB | TFT MODULE | -20°C ~ 70°C | With Controller Board | Raspberry Pi | Capacitive Touch Display
Introducing the HTM-H070A2-RGB-B06-CTP, a cutting-edge 7-inch Capacitive Touch Display designed specifically for Raspberry Pi enthusiasts. This IPS LCD display offers an impressive resolution of 1024x600 pixels, providing you with vibrant and crisp visuals for all your projects.
Featuring an advanced LCD controller board, this display ensures seamless compatibility and effortless integration with your Raspberry Pi. Whether you're working on a DIY project, developing an interactive application, or simply enhancing your Raspberry Pi experience, this display is the perfect choice.
With a luminance of 550cd/m2, this display delivers excellent brightness, ensuring clear visibility even in challenging lighting conditions. Whether you're indoors or outdoors, you can rely on this display to provide optimal viewing experiences.
The RGB interface ensures a smooth and reliable data transfer between the display and your Raspberry Pi, allowing for quick and accurate communication. This ensures that your projects run seamlessly, without any lag or delays.
Built with a rugged TFT module, this display is designed to withstand a wide temperature range, from -20°C to 70°C. So, no matter the environment or application, you can trust this display to perform reliably and consistently.
What sets this display apart is its capacitive touch functionality, providing a highly responsive and intuitive user interface. Interact with your Raspberry Pi effortlessly, swipe through menus, zoom in on images, or play games with the precision and smoothness of capacitive touch technology.
Whether you're a hobbyist, a developer, or an educator, this 7-inch Capacitive Touch Display is a fantastic addition to your Raspberry Pi setup. Experience enhanced visuals, seamless integration, and effortless touch interactions with this exceptional display. Elevate your Raspberry Pi projects to the next level with the HTM-H070A2-RGB-B06-CTP.
General information
|
Item |
Specification |
Unit |
|
|
Outline Dimension |
186.9x108x8.3 |
mm |
|
|
Display area |
156.1x88.5 |
mm |
|
|
Number of Pixel |
1024(H) x 600(V) |
pixels |
|
|
Pixel pitch |
- |
mm |
|
|
Pixel arrangement |
RGB |
|
|
|
Display mode |
Normally Black |
|
|
|
NTSC |
70(Typ.) |
% |
|
|
Surface treatment |
Antiglare, Hard-Coating (3H) |
|
|
|
Weight |
- |
g |
|
|
Back-light |
Single LED (Side-Light type) |
|
|
|
Power Consumption |
Logic System (White Pattern) |
|
W |
|
B/L System |
- |
W |
|
All Products
|
Reliability Testing |
Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
|
Glass Cleanliness |
Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
|
Bezel Appearance |
Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
|
PCB Appearance |
PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
|
Soldering |
Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
|
ESD Protection & Safety |
All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Search keyword: tft 7, tft 7", 7 tft lcd, 7" tft lcd, 7 inch tft lcd, tft lcd 7, 7 tft display, 7" tft display,7 inch tft display, tft display 7, tft display 7"
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
